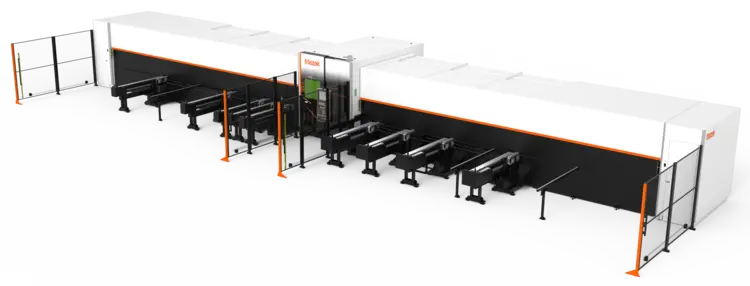

MAZAK FG-220 FIBER 3D TUBE, PIPE & STRUCTURAL LASER, 8.66" OD CAPACITY

Description

Solid State Laser Technology for Tube and Structural Applications

The FG-220 machine is designed for rugged performance and precision 3D laser cutting all while utilizing solid state laser-cutting technology.

The FG-220 cuts a large range of tube and pipe whether round, square, rectangular and triangular. In addition, the FG-220 can completely process I and H beams, angle iron and additional user defined shapes. The FG-220 features both high precision and great 3D flexibility.

The FG-220 has rigid construction with a cast frame and four chuck work support system extends your work envelope. The four chuck system provides greater rigidity in the cut zone allowing for more weight, larger diameters and longer lengths.

The precision 3D cutting capabilities reduces the time for secondary processes such as bending, welding, assembly, etc. The 6-axis laser with automated load/unload functions that handle mill-length pipe and structural materials. The FG-220 can also cut any desired angle for weld prep, plus achieve the highest accuracy for easy fit-up of assemblies.

Mazak has engineered a proprietary 3D cutting head that maximizes flexibility and the range of movement which expands the range of applications possible with the FG-220.

PERFORMANCE ADVANTAGES

- Rugged construction with four chuck system
- 3D laser-cutting precision reducing secondary processes
- Proprietary 3D cutting head maximizes flexibility and expands range of applications
