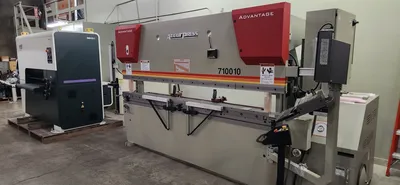

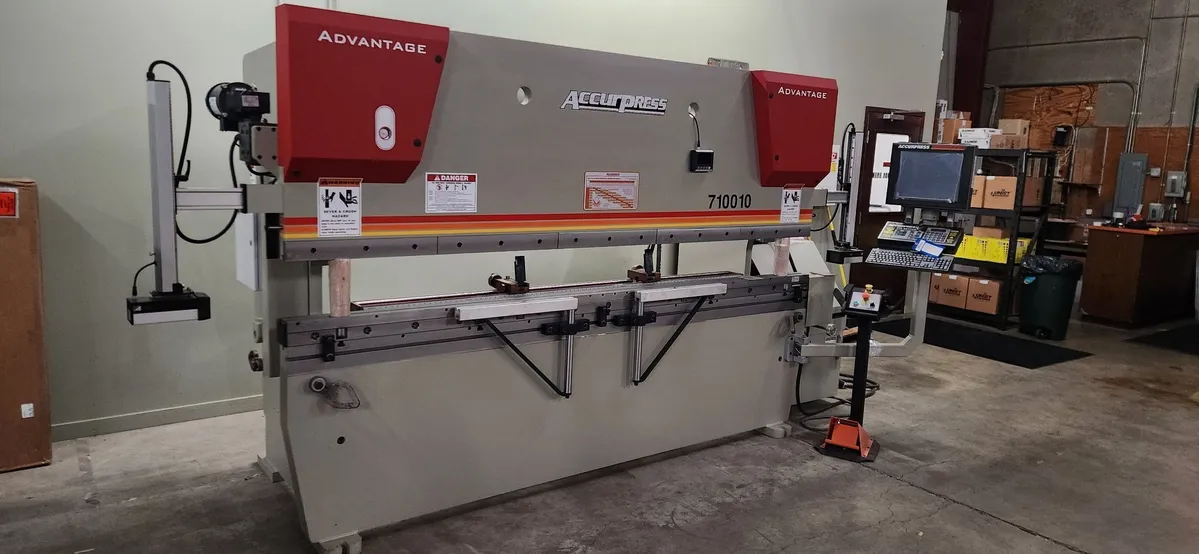

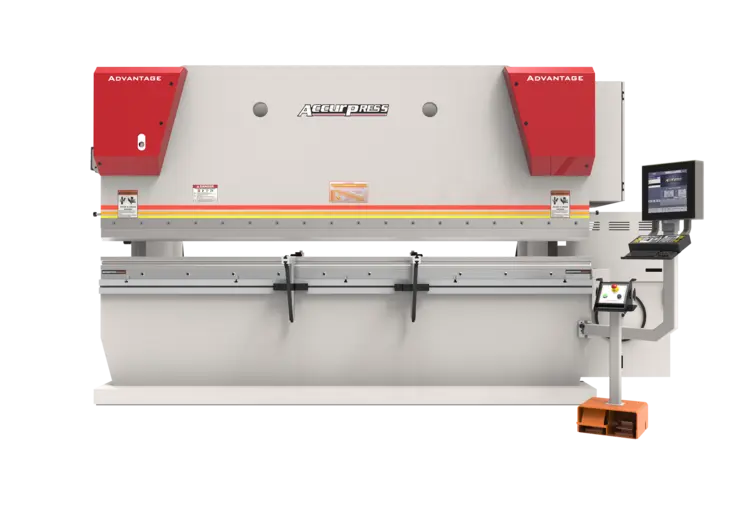

ACCURPRESS 710010 ADVANTAGE 100 TON X 10' CNC PRESS BRAKE W/ ETS3000 CONTROL
Have one to sell?
ConditionNew
1 available
New
Powered X & R Axis

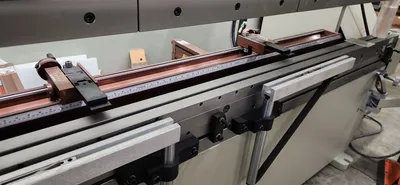

(2) Manual X-Prime Finger Assemblies
Powered Accurcrown 3.75‚ CNC Crowning w/ 4-Way Die Fixtures
Hydraulic Oil
Machine Groove in Bed
Ram Machined for Dual Safety Tangs
Advantage Package
High Speed Hydraulic Package
(2) 24″ Front Swing-Stock Support Arms
T-Slot machined L-R in Front of Bed
Air Conditioner for Control Panel
Ram Open and Closed Height , Increased
Installation and Training and User Manuals
Tonnage: 100
Bed height: 34”
Top bed width: 3.5”
Ram open height: 14”
Ram closed height: 6”
Stroke length: 8”
Approach speed: 115 IPM
Bend speed: 24 IPM
Return speed: 200 IPM
Length of bed: 120”
Distance between housings: 100”
Approximate dimensions: 136” x 52” x 84”
Approximate weight: 14,000 Lbs
Wired: 460/60/3

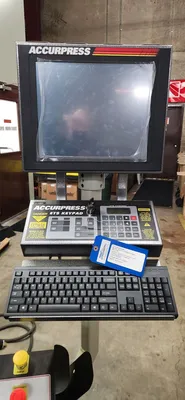

Equipped with: ETS3000/P10 Premium CNC Backgauge
Safety guarding: Lazersafe Sentinel Plus
