MAZAK FT-150 NEO HIGH-SPEED FIBER TUBE LASER, 6" OD CAPACITY

Description

Small to medium diameter production tube-cutting

The FT-150 FIBER has been designed for high-speed cutting and reduced non-cutting process to improve cycle times. The result is superior productivity with high throughput.

This fiber tube laser machine includes a unique design and a proprietary agile U-Axis to facilitate speed and productivity. The FT-150 FIBER utilizes a series of advanced technologies and optional features to streamline and automate laser-cutting tube production processes.

PERFORMANCE ADVANTAGES

- FT-150 FIBER delivers high-speed and high-productivity for small to medium diameter tube production.

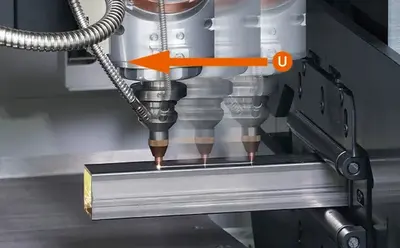

- The FT-150 FIBER's proprietary U-Axis offering impressive cutting speeds and superior part accuracy through a wide range of applications.

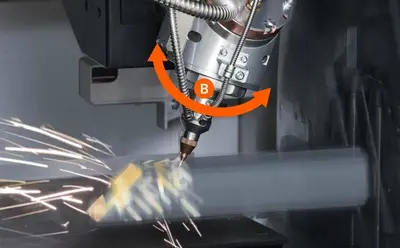

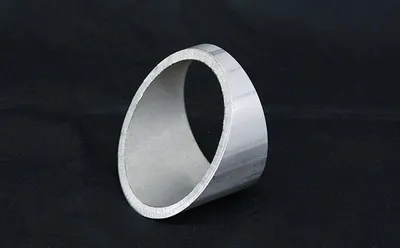

- This fiber tube laser utilizes a 2.5D torch with focus detection. The programmable angle of the B-Axis enables bevel cutting of the material thickness providing for improved welding, multi-tube assembly, fit and finish.

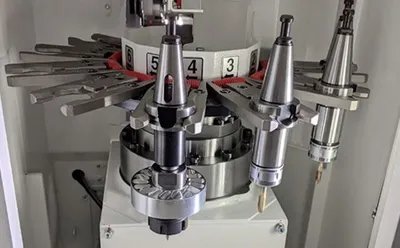

- Optional extrusion tapping is a value added process that utilizes a rotary spindle and eight tool positions. Any tool position can be deployed for direct taping or combined with extrusion, providing proper thread depth.
- Optional spatter guard protects the internal tube surfaces from cutting debris and reduces secondary operations.

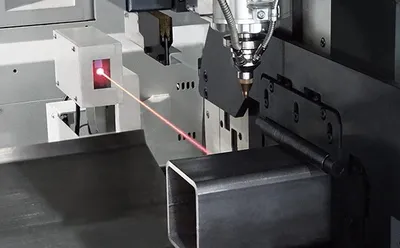

- Optional weld seam detection camera orients the workpiece for proper geometry orientation.

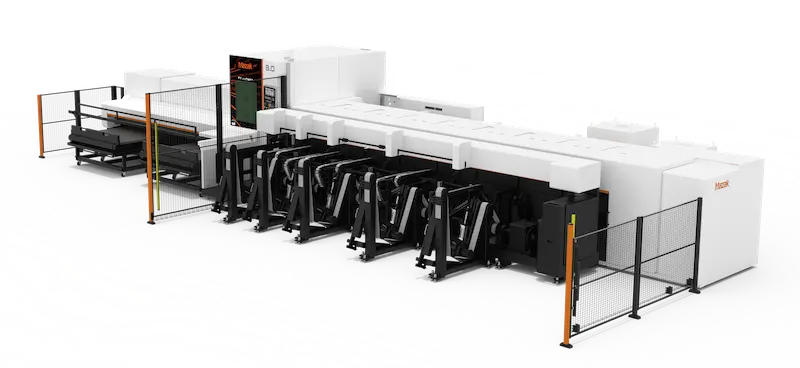

Large-capacity bundle loader
Materials are automatically loaded with a large-capacity bundle loader, and after laser processing, the cut parts are automatically unloaded.

After laser processing, the cut parts are automatically unloaded. An operator can interrupt the automaticbundle loading during a scheduled run and load material manually for imperative workpieces.
