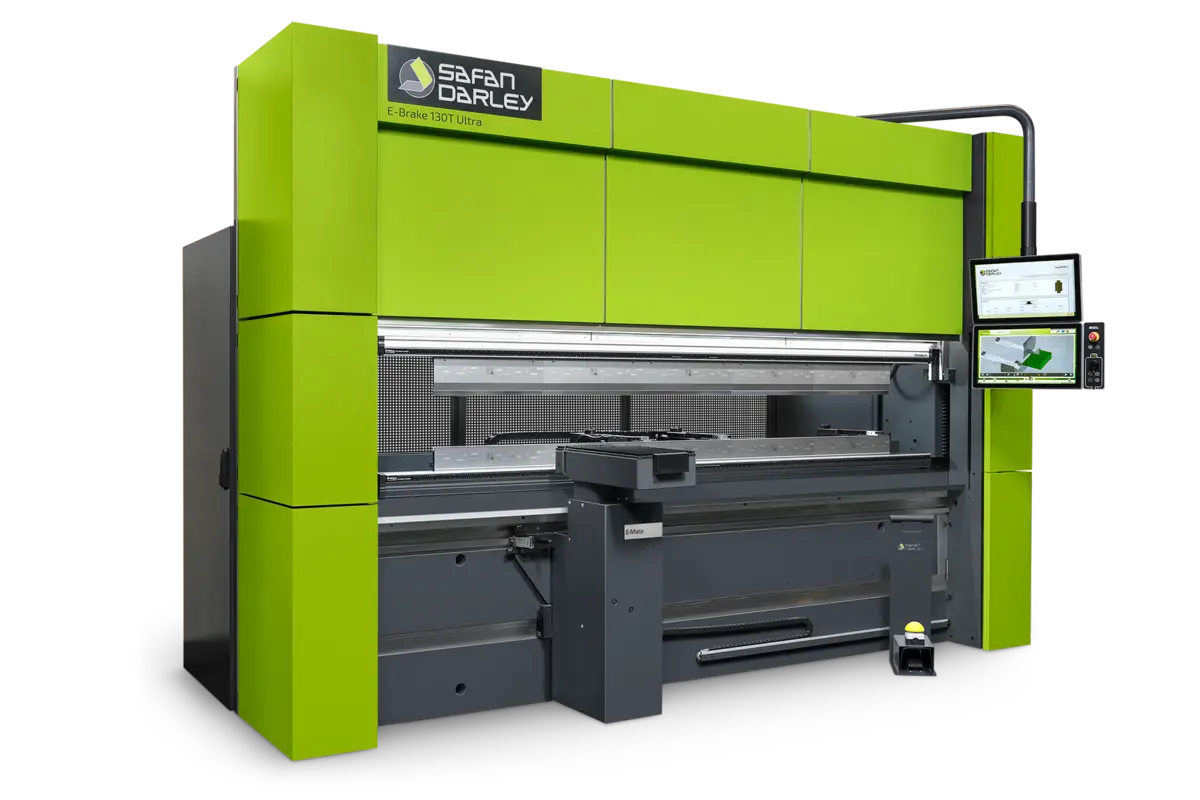

DEMO 2023 SAFAN DARLEY E-BRAKE ULTRA NS 100-3100 PRECISION CNC PRESS BRAKE
Have one to sell?
ConditionUsed
1 available
EQUIPPED WITH:
- 3D Backgauge System (6 Axis)
- Backgauge Stops with Sensors
- Open Height Enlargement Q=650mm
- Stroke 300mm
- Closed 350mm
- Second Touch Screen
- SafanDarley Light Guard
- NSCL-II-HC-Premium Top Tool Adapter w/Hydraulic Clamping
- NSCR-II-HC-Premium CNC Crownable Die Holder w/ Hydraulic Clamping
- Set of Movable Front Sheet Support Arms
- E-Bend S Sheet Thickness measuring on the Z1 Backgauge Finger
- Transformer Input Voltage: 480/60/3
- Electrical Cabinet with Airconditioning
- E-Brake w/USA Electrical Cabinet
- Tool Lighting for Working Area
- Tool Handling Aid for load and unload top tools. Installed on left hand side. Max. tool width from bending line 55mm.
- 1 Year Manufacturer Parts Warranty
Tonnage: 110 US
Working Length: 122"
Maximum Opening: 25.59"
Maximum Stroke: 11.81"
Ram Repeatability: +/- 0.0004"
Maximum Backgauge Travel: 39.37"
Backgauge Repeatability: +/- 0.00008"
Machine Weight: 13,970 lbs.
