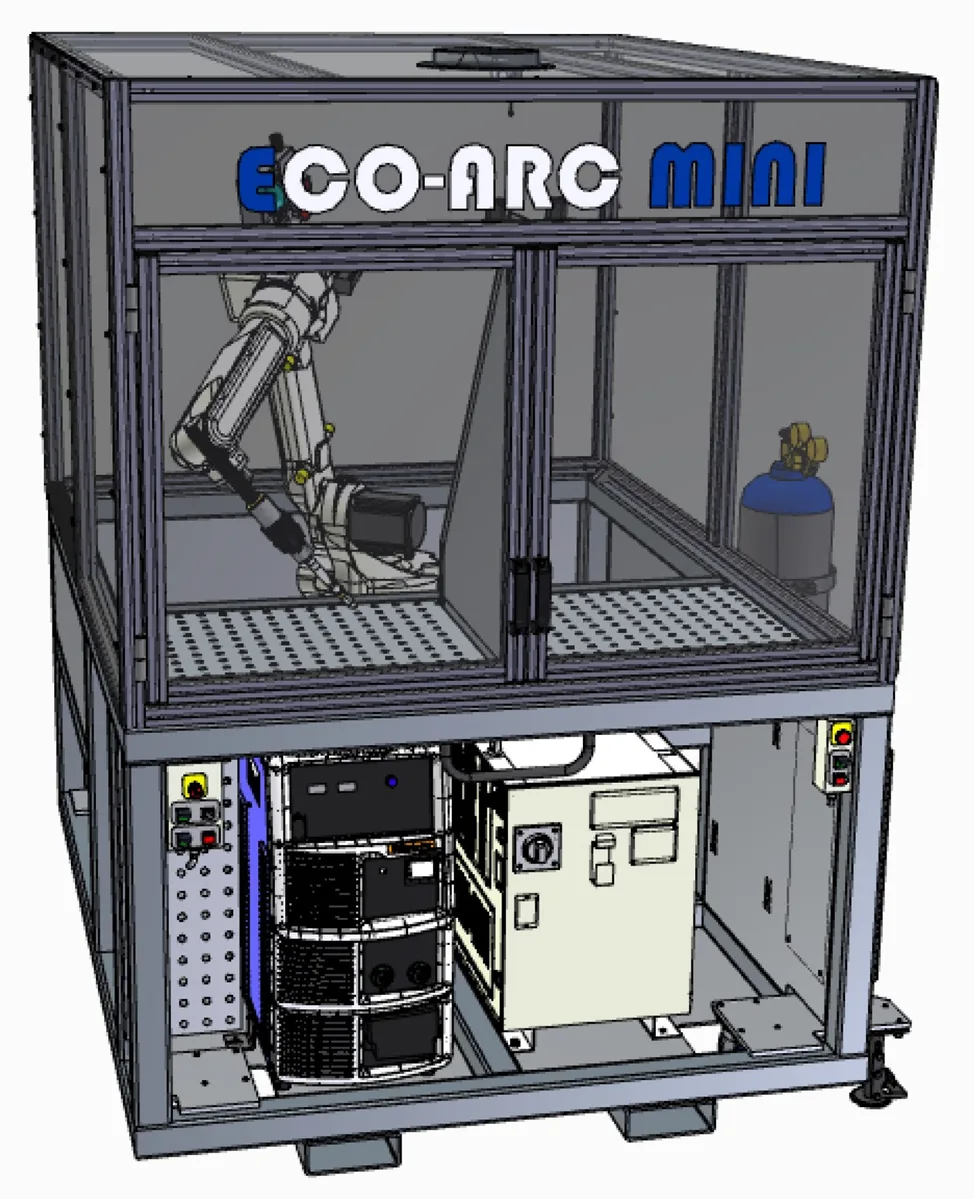

OTC DAIHEN ECO-ARC MINI PRODUCTION ROBOTIC ARC-WELDING CELL

Description

The OTC DAIHEN ECO-ARC MINI Production Robotic Arc-Welding Cell is a production-ready, OSHA-safety-compliant robot welding cell. Compact in size, it includes the world’s No. 1 arc welding robot system. Production robotic welding at a cobot affordable price, cobot portability and cobot ease-of-use, it also has the addition of integrated safety and the high-quality welds OTC DAIHEN equipment is known for.

- Arc-welding robot FD-V8 (standard reach)
- Two Flextur modular weld tables supporting uninterrupted production
- Welbee II WB-P402 advanced welding power source with robot-mounted wire feeder and 350A air-cooled torch
- Full perimeter safety guarding including OSHA-mandated arc-flash protection and safety interlocked
- Fume hood built-in to perimeter guarding
- Safety-interlocked access to prevent torch tip wire pinch-point injury during operation
- Manual, hinged operator access load/unload doors with safety interlock
- Welding gas bottle mount with regulator/flow meter included
- Rolling caster set supporting portable mobility
- Small footprint (6.7’D x 5.25’W)
- Each Flextur modular weld station table is 28.4”W x 27.4”D
- ¬Ω” thick with 16mm holes on 2” grid pattern
