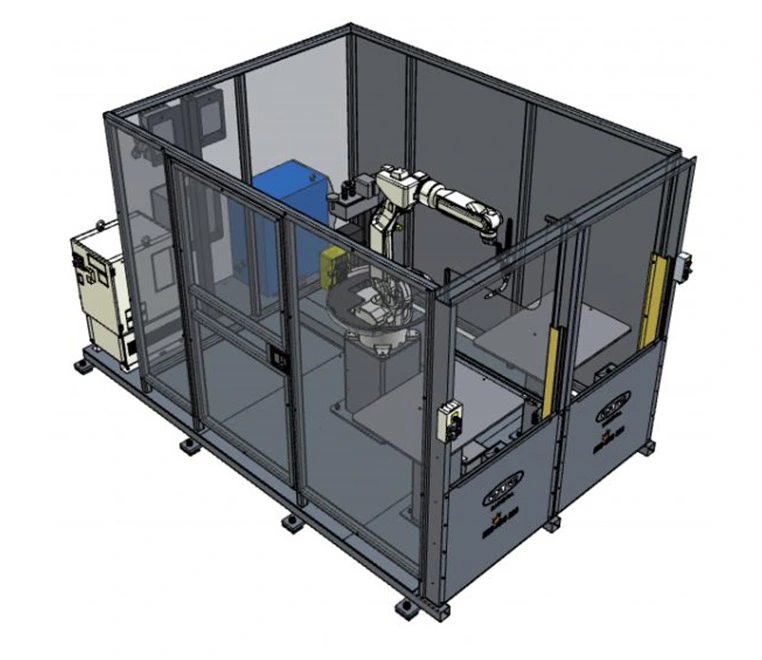

OTC DAIHEN ECO-ARC 200 ROBOTIC WELDING CELL

Description

The OTC DAIHEN ECO-ARC 200 is economically designed with stationary tables for durability and quick cycle times. The 200 is best suited for production runs of medium to high volume, with little or no part positioning. A simple, compact design allows for quick teach times and part access. Includes standard pneumatic doors.

- Best suited for production runs of medium to high volume, with little or no part positioning
- 2 stationary tables with standard robot manipulator (FD-V8)
- 1 arc welding robot
- Integrated Welbee II advanced welding power source with wire feeder and torch
- Advanced robot controller
- Teach pendant
- Steel tubular frame assembly
- Perimeter safety guarding
- Pneumatic shutter doors
- Zone Ring for station designation
- Standard forklift pockets in base for easy movement
- Steel wall station divider
- Tabletop Dimensions: 800mm x 600mm
- Weight: Approx. 2000kg
- Width: 2194mm (86.4”)
- Height: 2158mm (85.0”)
- Depth: 3430mm (135.0”)
