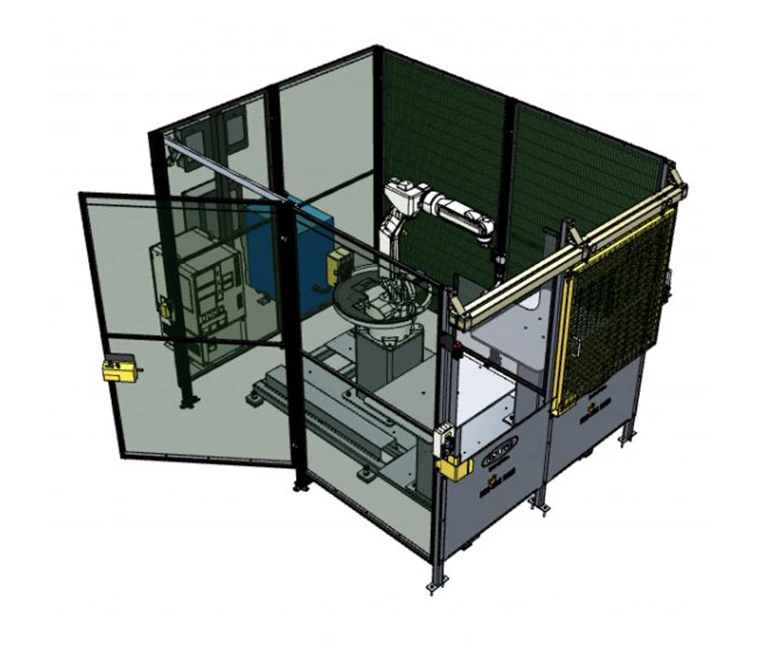

OTC DAIHEN ECO-ARC 200B ROBOTIC WELDING CELL

Description

The OTC ECO-ARC 200B (basic) provides cost savings with a smaller base, floor-mounted safety fencing and manually sliding and interlocking station doors. Like others in the 200 series, it is economically designed with stationary tables for durability and quick cycle times. It is best suited for production runs of medium to high volume, with little or no part positioning. A simple, compact design allows for quick teach times and part access.

- Smaller base with floor-mounted safety fencing and arc flash curtains
- Best suited for production runs of medium to high volume, with little or no part positioning
- 2 stationary tables with standard robot manipulator (FD-V8)
- 1 arc welding robot
- Integrated Welbee II advanced welding power source with wire feeder and torch
- Advanced robot controller
- Teach pendant
- Manually sliding operator load doors
- Steel tubular frame assembly
- Zone Ring for station designation
- Standard forklift pockets in base for easy movement
- Steel wall station divider
- Find options for the cell, headstock, tilt/turn and more in the Resources tab
- Tabletop Dimensions: 800mm x 600mm
- Weight: Approx. 1500kg
- Width: 2140mm (84.2”)
- Height: 2200mm (86.6”)
- Depth: 3575mm (140.7”)
