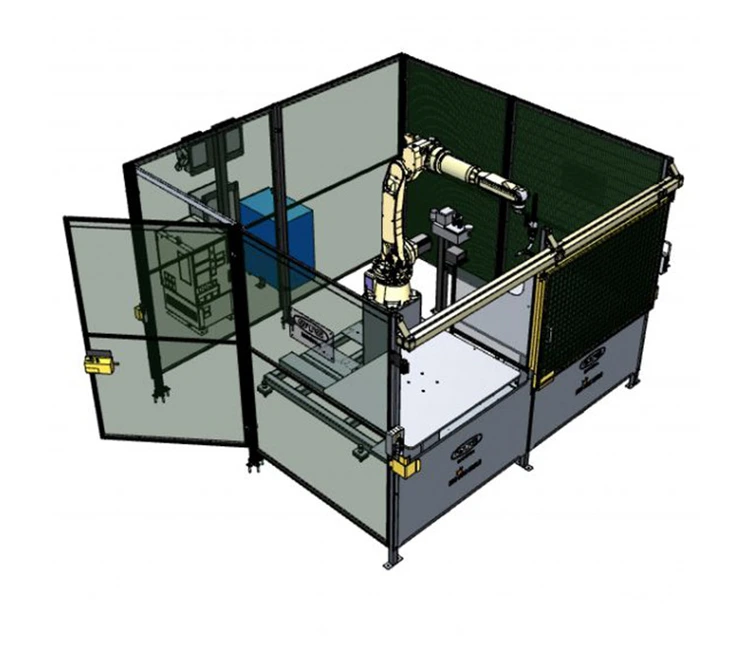

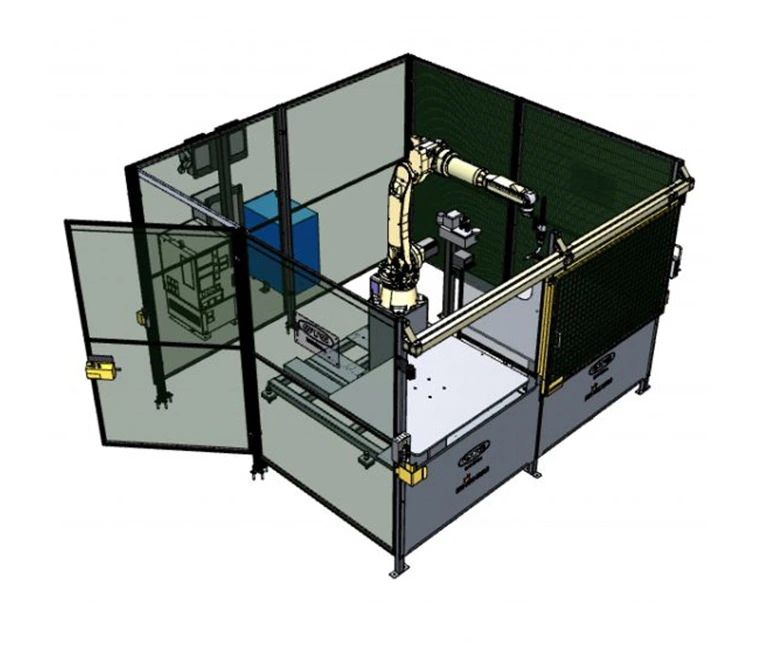

OTC DAIHEN ECO-ARC 200LB ROBOTIC WELDING CELL

Description

The OTC ECO-ARC 200LB (large, basic) provides a larger work envelope with a long arm robot manipulator and two larger tabletops. Like others in the 200 series, it is economically designed with stationary tables for durability and quick cycle times. The OTC ECO-ARC 200LB is best suited for production runs of medium to high volume, with little or no part positioning. A simple, compact design allows for quick teach times and part access.

- Larger work envelope with long arm robot manipulator and two larger tabletops
- Best suited for production runs of medium to high volume, with little or no part positioning
- 2 stationary tables with long reach robot manipulator FD-V8L (S2)
- 1 arc welding robot
- Integrated Welbee II advanced welding power source with wire feeder and torch
- Advanced robot controller
- Teach pendant
- Smaller base with floor-mounted safety fencing and arc flash curtains
- Manually sliding operator load doors
- Steel tubular frame assembly
- Zone Ring for station designation
- Standard forklift pockets in base for easy movement
- Steel wall station divider
- Tabletop Dimensions: 1220mm x 915mm
- Weight: Approx. 2000kg
- Width: 3294mm (129.7”)
- Height: 2200mm (86.6”)
- Depth: 3915mm (154.1”)
