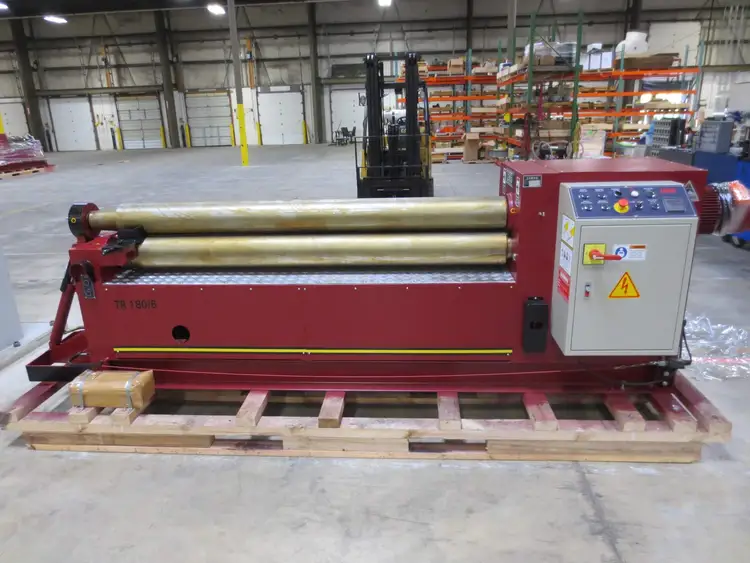

LEMAS TR 180/6 1/4" x 6' 3-ROLL INITIAL PINCH PLATE BENDING ROLL

Description

The LEMAS TR Series initial pinch bending rolls feature hydraulic adjustment of the rear bending roll and the lower pinch roll. In addition, the rear roll is hydraulically tiltable for cone rolling, and the hydraulic drop end makes it simple to remove the completed cylinder from the rolls.

Unique to LEMAS initial pinch machines is the Quick and Easy pinch gauge adjustment. Consistent positioning of the lower pinch roll is critical to rolling consistent quality cylinders. By simply inserting a small tab of the material thickness to be rolled into the pinch gauge control, the lower pinch roll is properly positioned to ensure consistency.

Other standard features include Direct-Drive Design using no belts, cone rolling attachment, rolls heat treated to 50Rc, digital readout for positioning the rear bending roll, and grooves for 1/4″, 3/8″ and 1/2″ round bar (except 80 series models).
