New 2024 NS MAQUINAS DM 1100C | Deburring Machines
Have one to sell?
ConditionNew
1 available
New

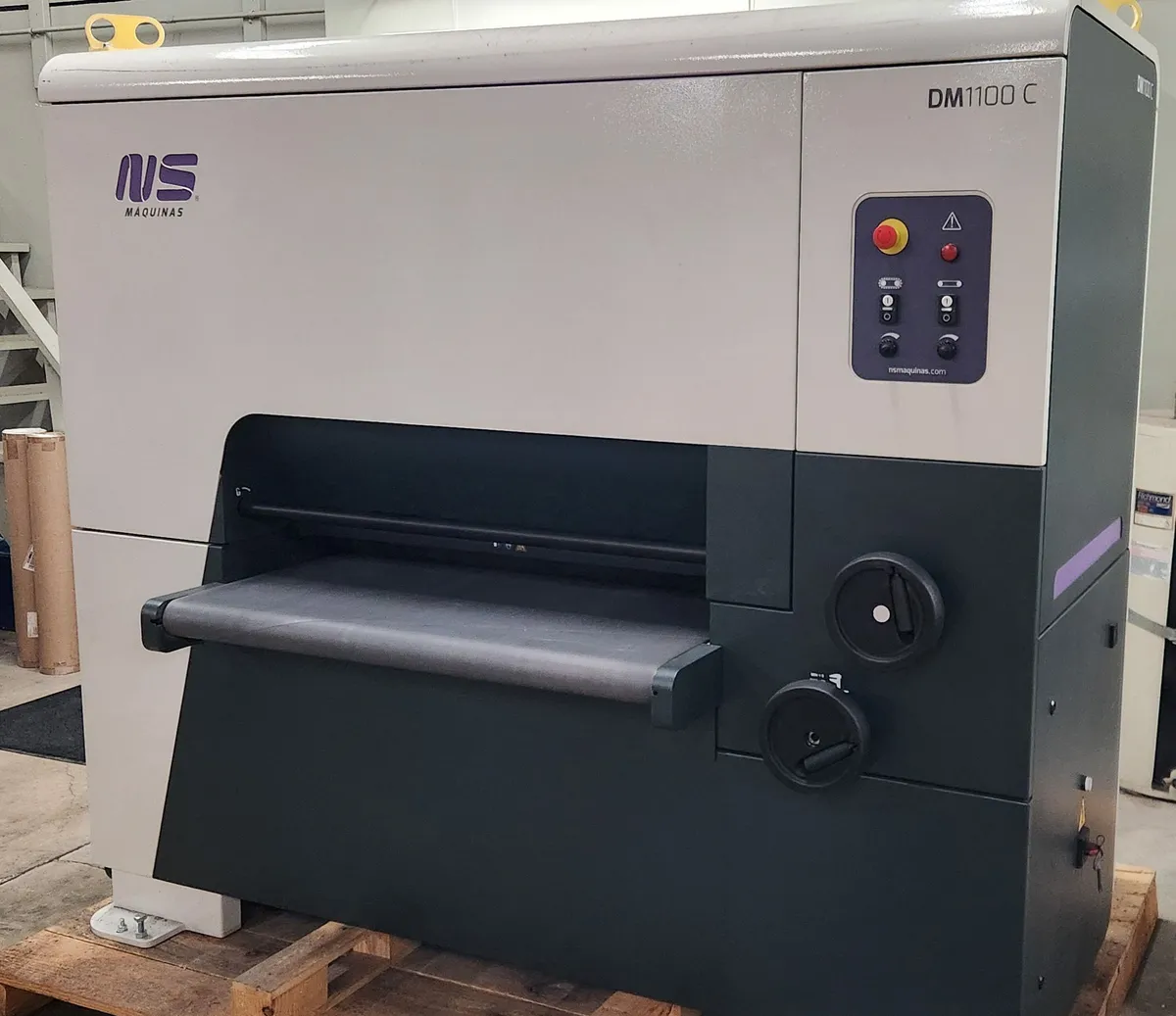

The NS DM 1100C deburrs inside and outside contours of stainless steel, steel and aluminum parts cut by laser, punching or shearing.
This machine has a double cross belt head which performs edge rounding leaving soft and clean edges on the entire metal surface.
TECHNICAL SPECIFICATIONS
Conveyor Motors 0.75 kw (1 H.P.)
Sanding Belts Motors 2 x 3.0 kw (3 H.P. x 4 H.P.)
Maximum Working Width 1,100mm (43”)
Maximum Material Thickness 50mm (2”)
Minimum Part Size 50 x 50mm (2” x 2”)
Variable Feed Rate 0.5 – 4.2m/min (2 – 14 ft/min)
Belt Dimensions 50 x 3,200mm (2” x 126”)
Weight 1,350 kg (2,976 Lbs.)
Machine Dimensions 2,230 x 1,530 x 1,940mm (88” x 60” x 76”)
Includes one set of complete Sanding Block Belts, Frequency Inverter (Needed for small parts), Conveyor Belt Cleaning Brush System – Motor Driven (Needed for small parts) and User Manual
