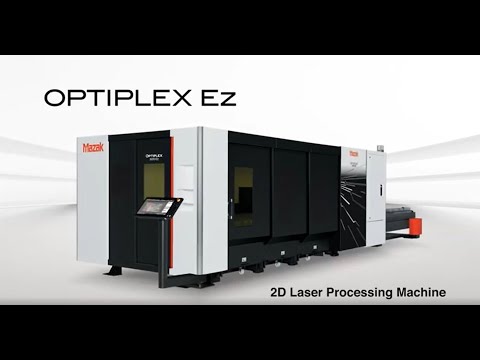

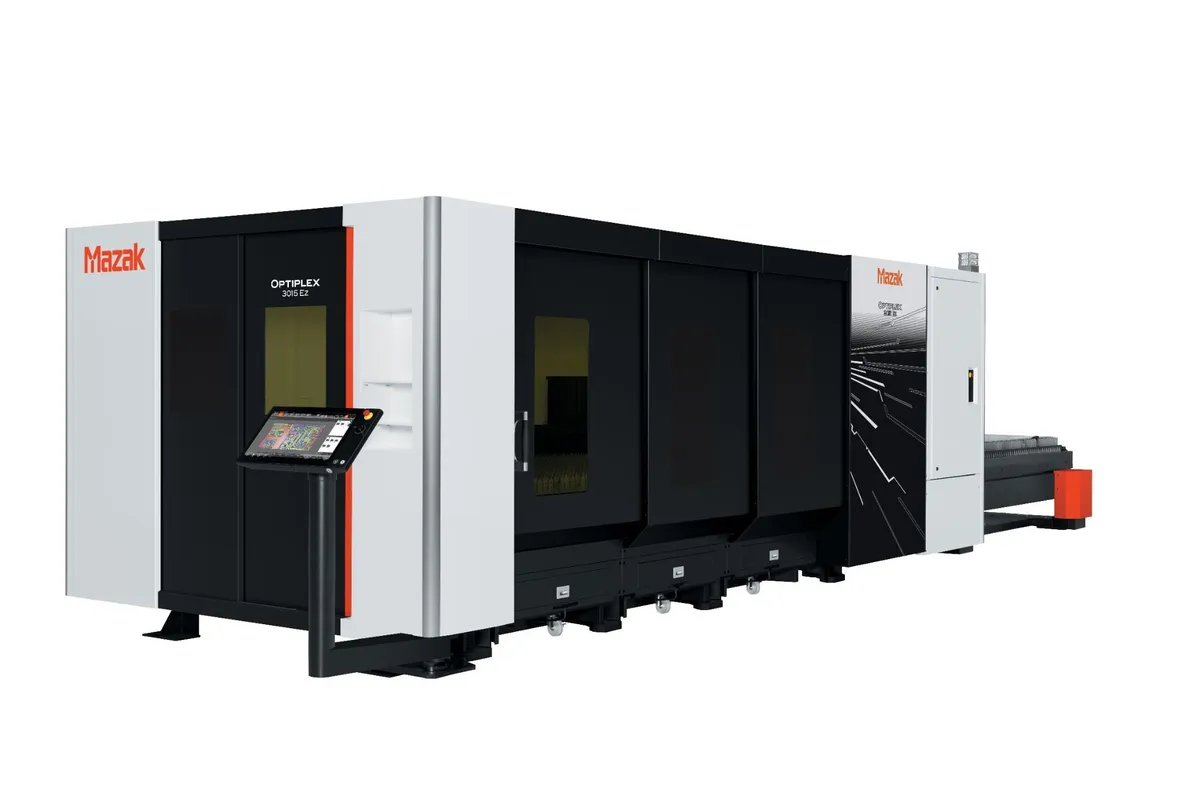

MAZAK OPTIPLEX 3015 EZ FIBER 2D LASER
Have one to sell?
ConditionNew
New
Entry-Level 2D laser processing machine combining cutting performance and ease of maintenance.
Selectable laser oscillator power: 4.0 kW, 6.0 kW, 8.0 kW.
Designed to provide high-cutting performance for thin to medium material thicknesses and ease of maintenance.
Ez is the ideal solution for those taking their first step in the laser machining world.
Workpiece specifications Workpiece diameter 60.04" × 120.08"
Laser resonator Laser power 4.0 kW / 6.0 kW / 8.0 kW
Stroke X-axis 122"
Y-axis 63"
Z-axis 5"
Rapid traverse rate X-axis 4724 IPM
Y-axis 4724 IPM
Z-axis 2362 IPM
CNC Control method semi-closed loop
Min. program increment 0.0001"
Programming method EIA / ISO
Monitor 21.5" color LCD
Machine size Machine width × length 114" × 414"
Machine height 91"
Machine weight 31966 lbs
Equipped with large front and side access doors
Sliding doors are installed on the front and side of the machine, minimizing the floor space requirement.
Improved operability of CNC control
The rotating CNC control panel gives operators the option to work at the front or side of the machine. The screen also tilts, offering a comfortable operating position for all users.
Large 21.5” LCD screen and touch panel
Operator can easily zoom in and out on the display screen with fingertips. The wide screen also allows the operator to check nesting at a glance.
Flat design for easier operation
Apart from the Emergency Stop and Rotary Switch buttons, operational buttons feature a flat design. The use of pictograms makes operation more intuitive.
One-touch operation
All necessary information, such as the cutting condition database, can be called up with a single touch. It is now easier to operate.
Assist functions
By simply entering the items suggested by assist functions, operator can easily set up functions such as nozzle center check and automatic nozzle changing.
