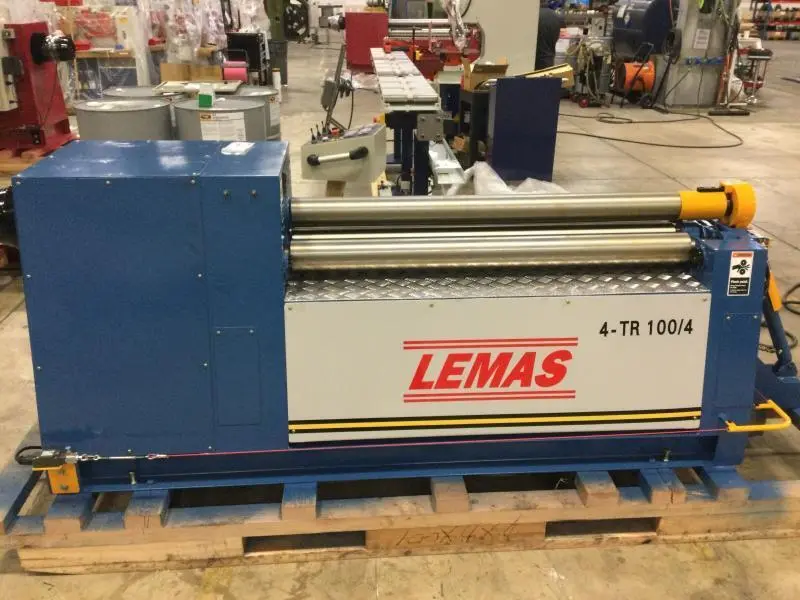

New LEMAS 4-TR 100/4 | Plate Bending Rolls including Pinch

Description

Trilogy Machinery is pleased to be the North American Distributor for the popular LEMAS Four-Roll Double-Pinch Plate Bending rolls.LEMAS has been distributing metal fabricating machinery in the United States for over 20 years including hundreds of plate bending rolls delivered since 2001.

LEMAS specializes in sheet metal fabricating equipment including hydraulic plate bending rolls delivering thousands of machines to satisfied customers around the world. Over 50 years of continuous operations have provided valuable experience and a solid foundation in the competitive global market. Innovation, quality, value and service are what LEMAS products represent around the world.

LEMAS 4-Roll double-pinch bending rolls feature hydraulic adjustment of the bending rolls and the lower pinch roll with separate convenient pinch pressure adjustment. In addition, both bending rolls are hydraulically tiltable for cone rolling, and the hydraulic drop end makes it simple to remove the completed cylinder from the rolls.

Sumitomo Cyclo® 6000 gear-less speed reducers, featured on all LEMAS plate rolls, uses a unique epicycloidal design superior to conventional speed reducers using common tooth gears. Unlike teeth-style gears with limited contact points, a Cyclo has two-thirds of its reduction components in contact at all times. This design enables Cyclo speed reducers and gear-motors to withstand shock loads exceeding 500% of their ratings, and provide exceptional performance, reliability and long life in the most severe applications.

Other standard features include Direct-Drive Design using no belts or chains, cone rolling attachment, rolls heat treated to 50Rc, digital readouts for positioning both side bending rolls, and much more.

Features on LEMAS 4- Roll Machines:
• Direct-Drive Design using no belts or chains -Less maintenance, better performance
• Spherical roller bearings on all rolls
• Hydraulically powered bending rolls – No manual adjustment needed.
• Power tilting side bending rolls for cone rolling – No need to manual adjust for cone bending
• Cone bending attachment – Already integrated for your cone bending needs
• Control panel on wheels with digital readouts for position of both side bending rolls – All machine controls easily located.
• Hydraulically operated drop-end for quick removal of rolled product – Easy open allows you to easily slide out finished part
• Forward/Reverse rotation controls – Ability to walk around entire machine while controlling rotation
• Upper and lower pinch rolls driven
• All rolls heat treated to 50 Rc – Keeping your rolls in peak condition as long as possible
• Sumitomo Cyclo® 6000 gear-less speed reducers – The hardest working in the industry.
• Manual tilt of the lower pinch roll
• Emergency stop cable
• Hydraulic oil, tools, technical manual
