Sunrise Semi-Automatic CNC Positioning
Have one to sell?
ConditionNew
New

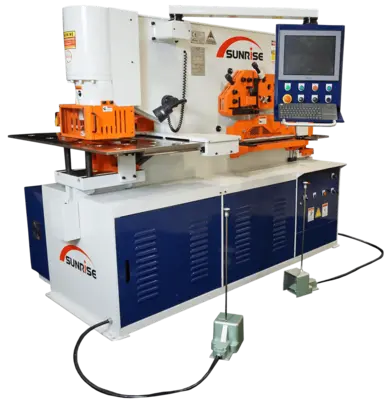

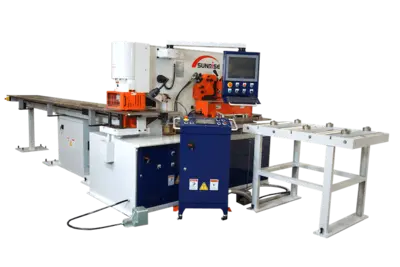

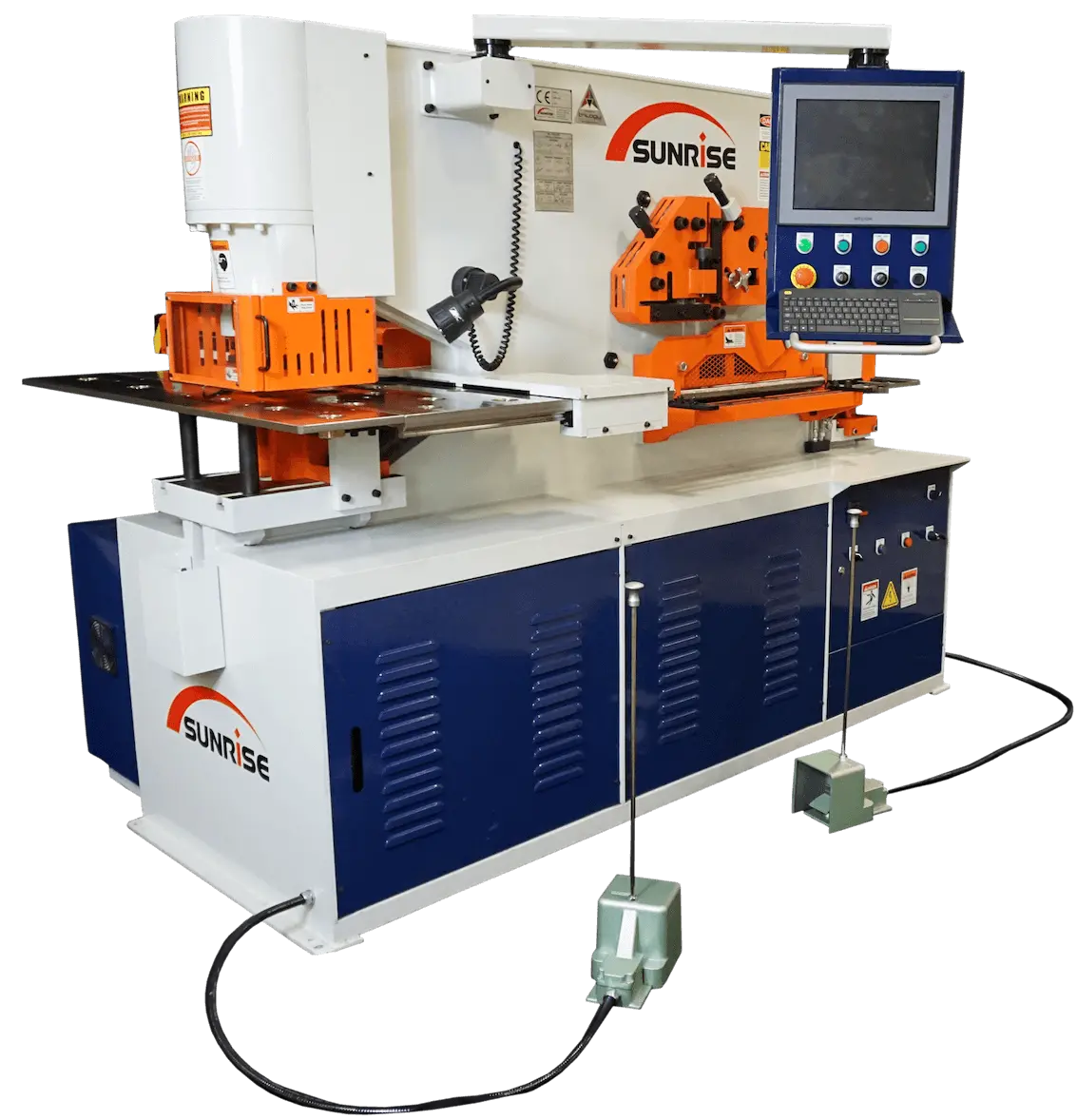

The Semi-Automatic CNC positioning tables from Sunrise are plate and angle positioning systems with touch-screen interfaces. They can be factory-installed on dual-cylinder ironworkers or punching machines with a throat depth of 20″ or more. The CNC operation and programming use a pendant-mounted controller, allowing easy programming and robust durability. The operator positions the material against the CNC-controlled X and Y stops and initiates the punch program. Upgrade options include a Windows PC Controller with a 15″ Touch-Screen, WiFi, flash-memory-based Nexcom computer, and a CNC Plate Shear System for enhanced versatility.
Available CNC Table Sizes – Mounted on either an Ironworker or Single-End Punch with 20″ or larger throat depth:
16″ x 40″ | 16″ x 80″ | 16″ x 120″ | 26″ x 40″ | 26″ x 80″ | 26″ x 120″
Positioning Speed (Both Axes): Up to 590″ per Minute Variable Speed
Accuracy: +/- 0.004″ / Foot
Optional Equipment
• 15″ PC Controller
• Hydraulic Shear Hold-Downs
• Hydraulic Stripper
• Auto Punch Lubrication System
• Hydraulic Oil Cooler
• Triple Punch System
• And more!
