Still punching long material by hand?
The Sunrise ANC combines an ironworker or single-end punch with a fully automatic CNC in-feed system for efficient punching only of flat bar, angle, and channel webs. It achieves high accuracy, repeatability, and efficiency with robust construction and precise components. The 7″ touch-screen controller allows easy programming, and the system includes a hydraulic punch stripper and pneumatic material clamping for seamless production. It has an in-feed roller table, specially designed strippers, and punching accessories. The Sunrise ANC is expandable up to 40′ in-feed based on material requirements, offering enhanced versatility for various applications.
Available Sizes:
20′ up to 40′ of automated in-feed
Must be factory installed on to any SUNRISE Punching Machine or Dual-Cylinder Ironworker.
X-Axis Positioning Speed: 490″ per Minute
Punches Per Minute: Up to 41 (3/4″ Stroke)
X-Axis Accuracy: +/- 0.004″/foot
Standard Equipment

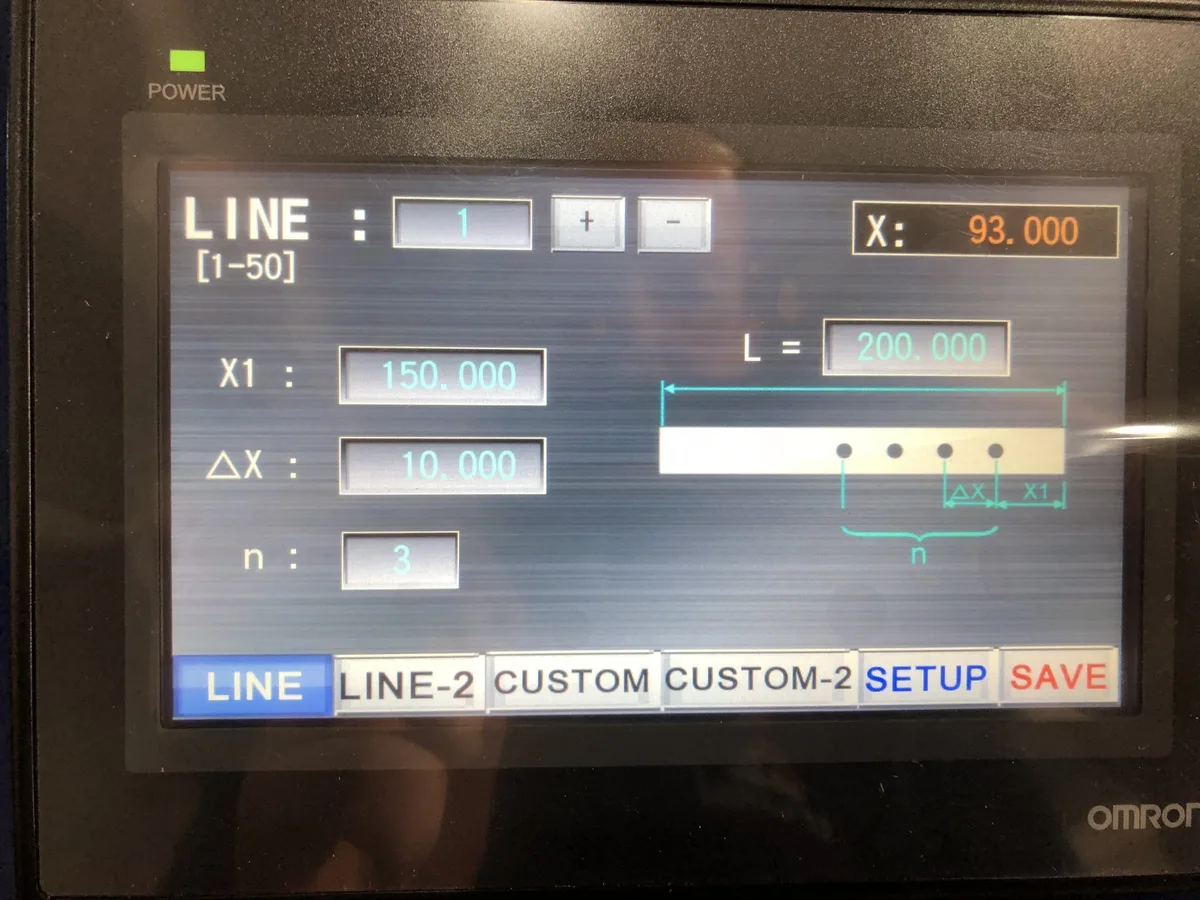

• 7″ Touchscreen Programmable Controller
• 150 Program Memory
• Pneumatic Material Clamping
• Wide variety of custom tooling available!
Optional Equipment
• Expandable to 40′
• Multi-Punch Options
• Safety Mat
