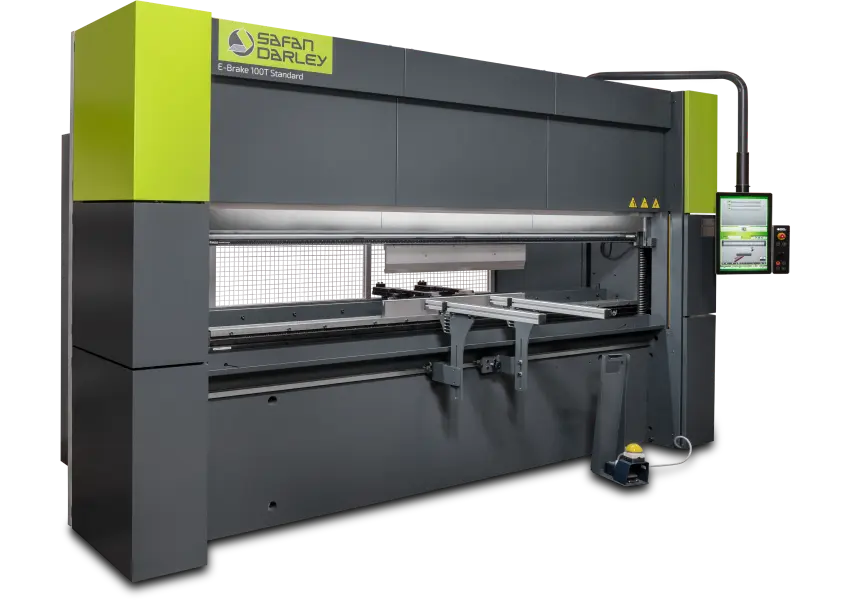

SAFAN DARLEY 100-3100 E-Brake 100T Standard
Have one to sell?
ConditionNew
New
High-end machine for everyone
The E-Brake 100T Standard has been a very popular choice for clients making their first move into an electronic press brake. It is our entry level model and has all of the major benefits of the E-Brake technology, but a limited range of options when compared with the Premium and Ultra ranges.
The standard comes in 100 metric ton (110T US Tons) pressing force and 3100mm (10 foot) working length and is equipped with the basic options.
Key Features
Efficiency
Up to 30% shorter cycle times
Economy
Up to 70% energy saving
Reliability
Mechanical drive system with 5 year warranty
Stability
Reinforced O-frame for optimum stability
Safety
Integrated safety system and absence of hydraulic oil
Usability
The most functional and intuitive Man-Machine interface
Bending length in inches 120
Pressure force in US Ton 110
Maximum stroke in inches 12
Q size in inches 23
Closing speed in inch/min 177
Bending speed max. in inch/min 49
Return speed in inch/min 177
Motor power in kW 11
Machine weight in lb 16.5
Machine length in inches 171
Machine height in inches 106
EC10 press brake control, single screen with splitscreen
1 Hold to Run operating console
CNC-controlled R-axis
CNC-controlled Y1-Y2 axis (top beam adjustable inclined +/- 0.1 inch)
CNC-controlled back gauge (X-axis)
Z1-Z2 axis, manually adjustable on a linear guide
2 parallel back gauge stops
Build in size of 23.22 inch (Q-dimension)
NSCL I MC Pro top tool mechanical clamping system
OB/S-3 lower tool mechanical clamping system
2 support arms with brushes
Tool lighting on the front
Safety light guard, programmable on HMI
Safety in compliance with CE*
* Standard only for CE countries
