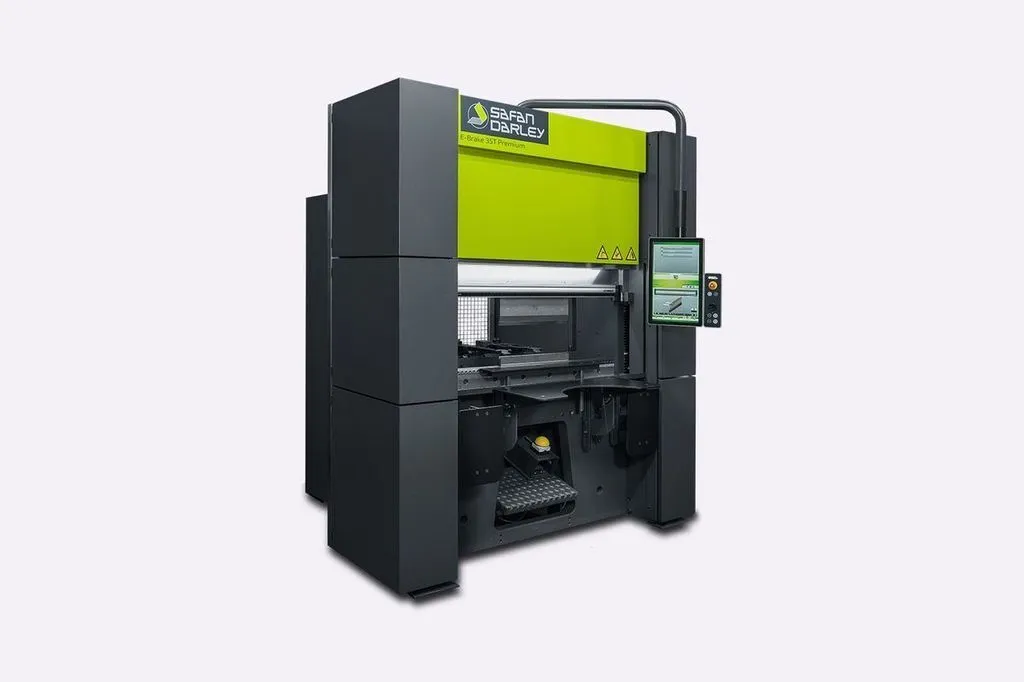

SAFAN DARLEY 40-1600 E-Brake 35-40T Premium Ergonomic
Have one to sell?
ConditionNew
New
Man and Machine as one unit
E-Brake Premium is the successor to the current E-Brake up to 143T. One key feature is the new design, which significantly improves the ergonomics. The controls are also given a new design and are Industry 4.0-ready, which means that they communicate with external systems.
The Premium series of E-Brakes are our most popular sellers. With the Ergonomic design of the E-Brake, SafanDarley enables the operator and the press brake to work as one unit. Ideal for faster production of larger series, sheet metal work and bending high quantities.
Key Features
Efficiency
Up to 30% shorter cycle times
Economy
Up to 70% energy saving
Reliability
Mechanical drive system with 5 year warranty
Stability
Reinforced O-frame for optimum stability
Safety
Integrated safety system and absence of hydraulic oil
Usability
The most functional and intuitive Man-Machine interface
Bending length in inches 60
Pressure force in US Ton 44
Maximum stroke in inches 12
Q size in inches 23
Closing speed in inch/min 425
Bending speed max. in inch/min 48
Return speed in inch/min 425
Motor power in kW 11
Machine weight in lb 11.9
Machine length in inches 112
Machine height in inches 106
EC10 press brake control, single screen with splitscreen
1 Hold to Run operating console
CNC-controlled R-axis
CNC-controlled Y1-Y2 axis (top beam adjustable inclined +/- 0.1 inch)
CNC-controlled back gauge (X-axis) with a wide range
Z1-Z2 axis, manually adjustable on a linear guide
Manual variable adjustment of back gauge fingers width across a linear guide
Build in size of 23.22 inch (Q-dimension)
NSCL I MC Pro top tool mechanical clamping system
OB/S-3 lower tool mechanical clamping system
2 support arms
Tool lighting on the front
Programmable and integrated safety light guard*
Safety in compliance with CE*
* Standard only for CE countries
