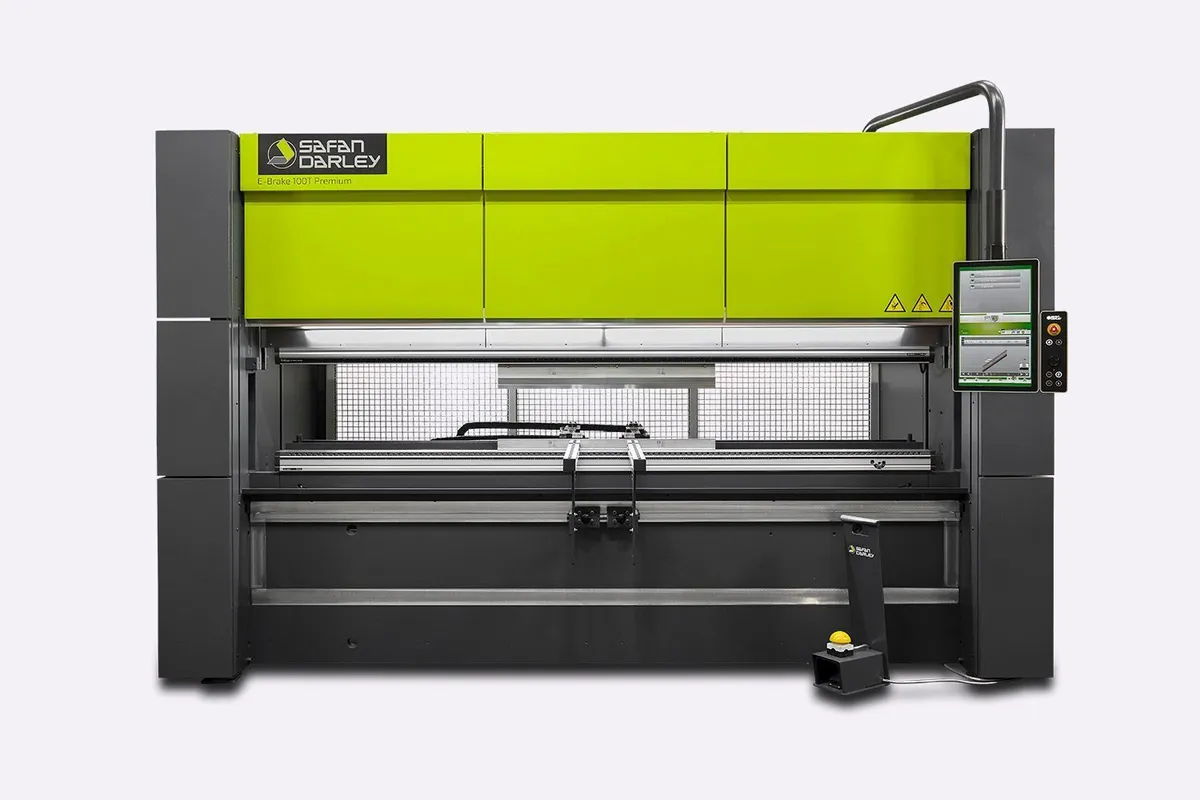

SAFAN DARLEY 80-2250 E-Brake 35-130T Premium
Have one to sell?
ConditionNew
New
Productive all-around machine
E-Brake Premium is the successor to the current E-Brake up to 143T. One key feature is the new design, which significantly improves the ergonomics. The controls are also given a new design and are Industry 4.0-ready, which means that they communicate with external systems.
The Premium series of E-Brakes are our most popular sellers. The Premium comes in US Tons of 39T, 44T, 55T, 88T, 110T, 143T.
Key Features
Efficiency
Up to 30% shorter cycle times
Economy
Up to 50% energy saving
Reliability
Mechanical drive system with 5 year warranty
Stability
Reinforced O-frame for optimum stability
Safety
Integrated safety system and absence of hydraulic oil
Usability
The most functional and intuitive Man-Machine interface
Pressure force in US Ton 88
Bending length in inches 100
Maximum stroke in inches 12
Q size in inches 23
Closing speed in inch/min 213
Bending speed max. in inch/min 48
Return speed in inch/min 213
Motor power in kW 11
Machine weight in lb 15.2
Machine length in inches 150
Machine height in inches 106
EC10 press brake control, single screen with splitscreen
1 Hold to Run operating console
CNC-controlled R-axis
CNC-controlled Y1-Y2 axis (top beam adjustable inclined +/- 0.1 inch)
CNC-controlled back gauge (X-axis) with a wide range
Manual variable adjustment of back gauge fingers width across a linear guide
Build in size of 23.22 inch (Q-dimension)
NSCL I MC Pro top tool mechanical clamping system
OB/S-3 lower tool mechanical clamping system
2 Support arms (11.81 inch)*
Programmable and integrated safety light guard*
Safety in compliance with CE*
* Standard only for CE countries
