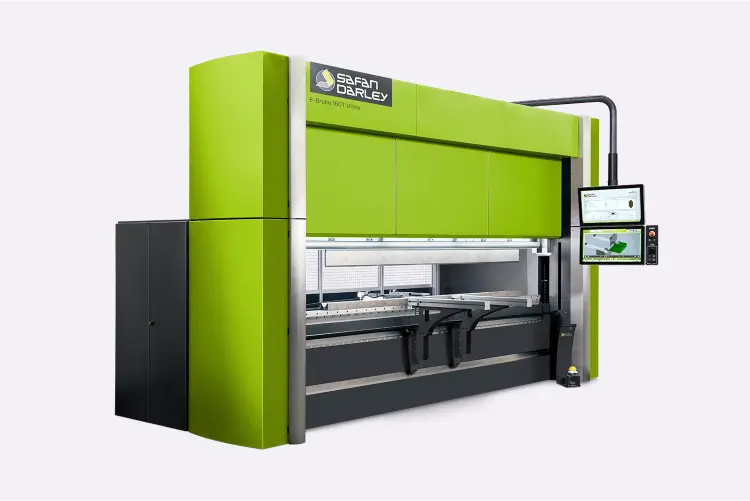

SAFAN 160-3100 E-Brake Ultra Press Brake
Have one to sell?
ConditionNew
New
Noisless high tonnage press brakes
SafanDarley is the only manufacturer of the, 176-330 US Tons, high tonnage electronic press brakes. We were encouraged by our existing clients to provide them an electronic press brake to meet their higher tonnage needs as well. They especially love how quiet these high tonnage brakes are for their operator’s work environment.
The SafanDarley E-Brake concept constitutes a further improvement on servo-electronic technology, one that is resulting in ground-breaking performances. Based on extensive practical experience, SafanDarley has effectively adapted the technology and construction to the segment involving weights up to 200 tons and work lengths up to 4 metres. In addition, a strong point of the construction is the level foundation.
Key Features
Efficiency
Up to 30% shorter cycle times
Economy
Up to 50% energy saving
Reliability
Mechanical drive system with 5 year warranty
Stability
Reinforced O-frame for optimum stability
Safety
Integrated safety system and absence of hydraulic oil
Usability
The most functional and intuitive Man-Machine interface
Pressure force in US Ton 179
Bending length in inches 120
Maximum stroke in inches 12
Q size in inches 23
Closing speed in inch/min 236
Bending speed max. in inch/min 48
Return speed in inch/min 236
Motor power in kW 22
Machine weight in lb 33.0
Machine length in inches 177
Machine height in inches 122
SafanDarley EC20 Touch Screen CNC press brake controls
1 Hold to Run operating console
CNC-controlled R-axis
CNC-controlled Y1-Y2 axis (top beam adjustable inclined +/- 0.1 inch)
CNC-controlled back gauge (X-axis) with a wide range
Manual adjustment of 2 back gauge fingers across a linear parallel guide
Build in size of 23.22 inch (Q-dimension)
NSCL II MC Premium top tool mechanical clamping system
NSCR II MC Premium with CNC crowning
2 Support arms (11.81 inch)*
Programmable and integrated safety light guard*
Safety in compliance with CE*
* Standard only for CE countries
