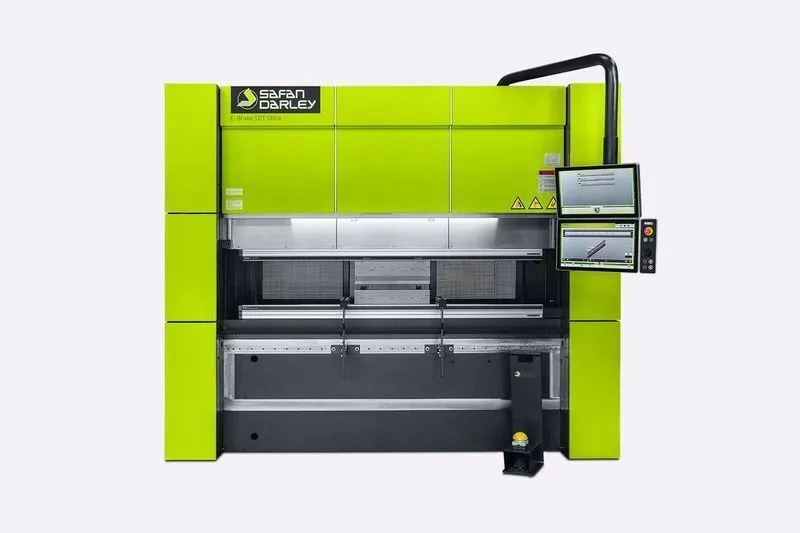

SAFAN DARLEY 130-4100 E-Brake 50-130T Ultra
Have one to sell?
ConditionNew
New
Noisless machine with amazing performance
The new generation of E-Brake adds important new advantages to the E-Brake technology, which has already proven itself all over the world. The machines in the 50T–130T range are built according to a modular concept that is a new step forward in the efficiency of machine construction. The new design is in line with the design of the larger E-Brakes. The CNC crowning and the dual screen EC20 control are important characteristics. In addition, more options have been added, and the machine can be expanded with a 3D back gauge and E-Bend L Blue angle measurement system.
Key Features
Efficiency
Up to 30% shorter cycle times
Economy
Up to 50% energy saving
Reliability
Mechanical drive system with 5 year warranty
Stability
Reinforced O-frame for optimum stability
Safety
Integrated safety system and absence of hydraulic oil
Usability
The most functional and intuitive Man-Machine interface
Pressure force in US Ton 143
Bending length in inches 160
Maximum stroke in inches 12
Q size in inches 23
Closing speed in inch/min 260
Bending speed max. in inch/min 48
Return speed in inch/min 260
Motor power in kW 15
Machine weight in lb 24.6
Machine length in inches 211
Machine height in inches 114
SafanDarley EC20 Touch Screen CNC press brake controls
1 Hold to Run operating console
CNC-controlled R- axis
CNC-controlled Y1-Y2 axis (top beam adjustable inclined +/- 0.1 inch)
CNC-controlled back gauge (X-axis) with a wide range
Manual variable adjustment of back gauge fingers width across a linear guide
Build in size of 23.22 inch (Q-dimension)
NSCL II MC Premium top tool mechanical clamping system
NSCR II MC Premium with CNC crowning
2 Support arms (11.81 inch)*
Programmable and integrated safety light guard*
Safety in conformance with CE*
* Standard only for CE countries
