Machine fully tailored to current and future needs

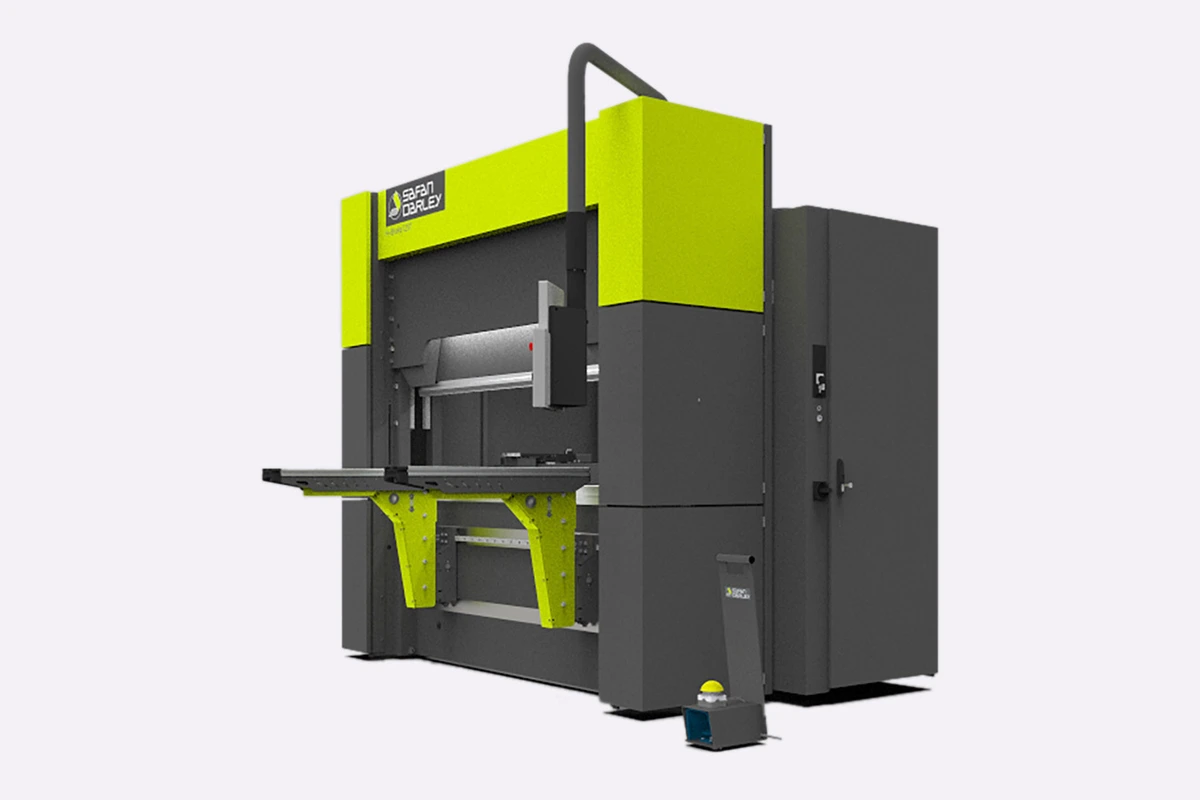

SafanDarley designed the H-iBrake hydraulic press brake series with the aim of optimising efficiency, environmental friendliness, ergonomic design and cost-effectiveness. The new intelligent hydraulic drive has been developed entirely in-house, resulting in increased approach and pressing speeds, optimum precision and energy regeneration. As a result, you not only enjoy unbeatable reliability and increased uptime, but also a significant reduction in energy costs. The technology used covers the full range of our press brakes, offering both power and precision across the entire range of tonnages. Whether you are working with light or heavy sheet metal, the H-iBrake delivers optimum performance in every situation.
Key Features
Efficiency
Up to 30% shorter cycle times
Stability
Reinforced O-frame for optimum stability
Safety
Adaptive safety system and less oil present in the machine
Usability
The most functional and intuitive Man-Machine interface
Pressure force in kN 1250
Bending length in mm 1530
Maximum stroke in mm 300
Q-size in mm 650
Closing speed in mm/sec 200
Bending speed max. in mm/sec 10
Return speed in mm/sec 170
Motor power in kW 15
Machine weight in lb 6000
SafanDarley E-Control EC20 - 2D graphic CNC control
CNC-controlled R-axis
CNC-controlled Y1+Y2 Axis
CNC-controlled back gauge (X-axis)
Z1+Z2-axis manually adjustable
2 standard front support arms
Large daylight opening (Q-size) 25.6 inch
Press beam stroke of 11.8 inch
Lower beam height 40.4 inch
Light beam safety type AKAS®5 with manual height adjustment
Working area lighting on front and rear
