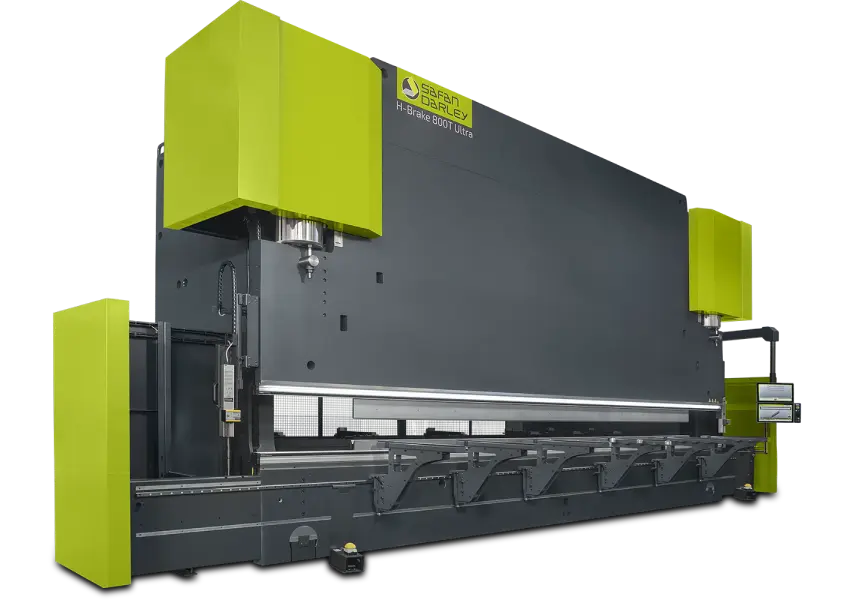

SAFAN DARLEY HD1000T - 8200 H-Brake HD 700-1000T Ultra
Have one to sell?
ConditionNew
New
The SafanDarley HD “Heavy Duty” Series
Progressive innovations and high quality machines has made SafanDarley the global brand leader that it is today. Our core values of Quality, Innovation, Sustainability and Trust are well known to the thin sheet metal markets and these values are also available to the Heavy fabrication sectors.
A recent one million euro investment in a state of the art machining centre has given SafanDarley the ability to produce machines up to 1100 US Tons and working lengths up to 8 metres. At SafanDarley all critical machine parts are made in our own factories in the Netherlands, enabling us to always guarantee the highest quality.
Key Features
Efficiency
Up to 30% shorter cycle times
Safety
Adaptive safety system and less oil present in the machine
Usability
The most functional and intuitive Man-Machine interface
Pressing force in kN 10000
Bending length in mm 8160
Maximum stroke in mm 450
Q-size in mm 800
Inside frame dimensions towards back guage 7200
SafanDarley E-Control EC20 - 2D graphic CNC control
Controls mounted on a swivelling arm on the right side of the machine
CNC-controlled R-axis
CNC-controlled Y1+Y2 Axis
CNC-controlled back gauge (X-axis)
Z1+Z2-axis manually adjustable
Top tool adapter NSCL II MC Premium (manual clamping)
NSCR II MC Premium CNC controlled crowning table
2 standard front support arms
Foot pedal including “Hold To Run”-function
Light beam safety type AKAS®5 with manual height adjustment
Work area lighting on the front and rear side of themachine
