SAFAN DARLEY 130-3100 R-Brake 130T Robotic Bending Cell
Have one to sell?
ConditionNew
New

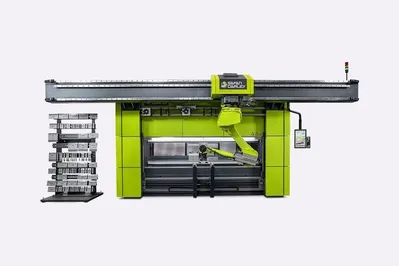

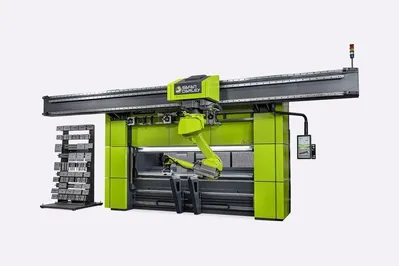

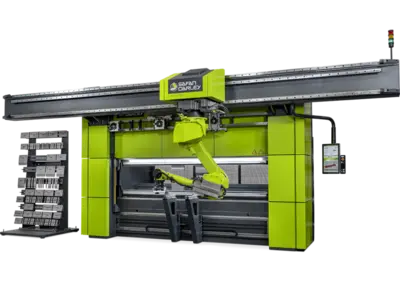

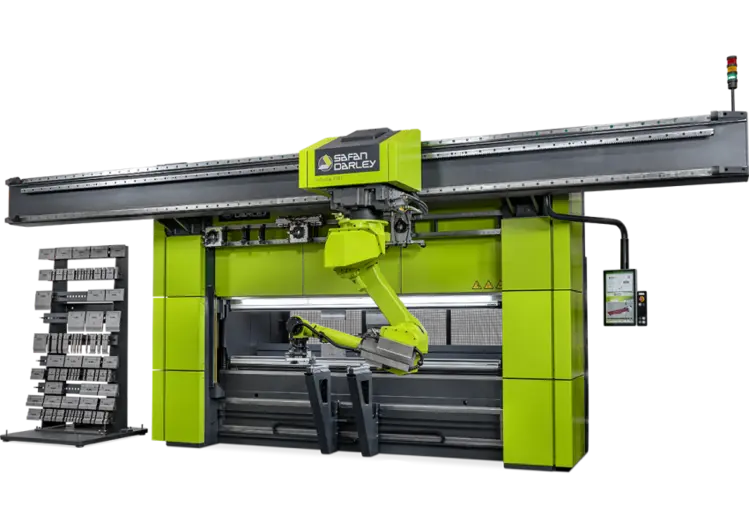

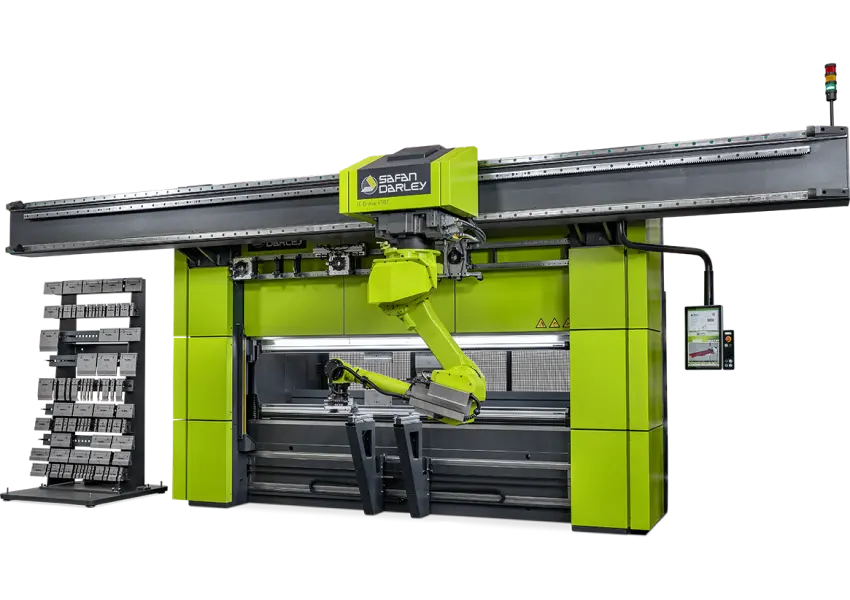

SafanDarley R-Brake:
the flexible bending cell
The R-Brake is a revolutionary bending concept! It combines one of our most popular E-Brakes, the 130T (143 US Tons) with a cantilevered robot design that keeps the floor in front of the machines clear.

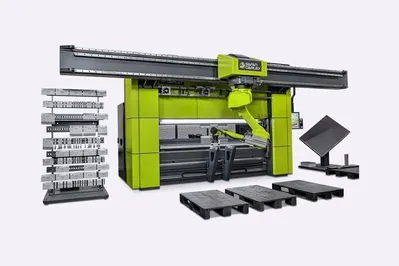

The robot on the R-Brake automatically changes the tooling and grippers as needed to keep the production flowing. The cell can be equipped with conveyors and pallet dispensers to keep production moving without interruption. The ASC controller provides full control for any third party integrations within the cell as well. The flexibility to quickly move the robot to the side and run the press brake manually for test parts is unique in the market! R-Brake 130T can be installed at customer site and running production parts in 7 days or less.
Key Features
Reliability
Vision system
Usability
The most functional and intuitive Man-Machine interface
Pressure force in US Ton 143
Bending length in inches 12.0
Maximum stroke in inches 11.8
Q-size in inches 29.5
Closing speed in inch/min 259.8
Bending speed max. in inch/min 47.2
Return speed in inch/min 259.8
Machine weight in lb 41.0
SafanDarley E-Control EC10
CNC-controlled R-axis
CNC-controlled Y1+Y2 axis (top beam adjustable inclined +/- 0.1 inch)
CNC-controlled back gauge (X-axis) with a wide range
CNC-controlled Z1+Z2-axis
M710iC/70 Fanuc robot
Robot gantry with a range of 236.2 Inch
CNC-controlled sheet turning station
Controlled by SafanDarley ASC-control
