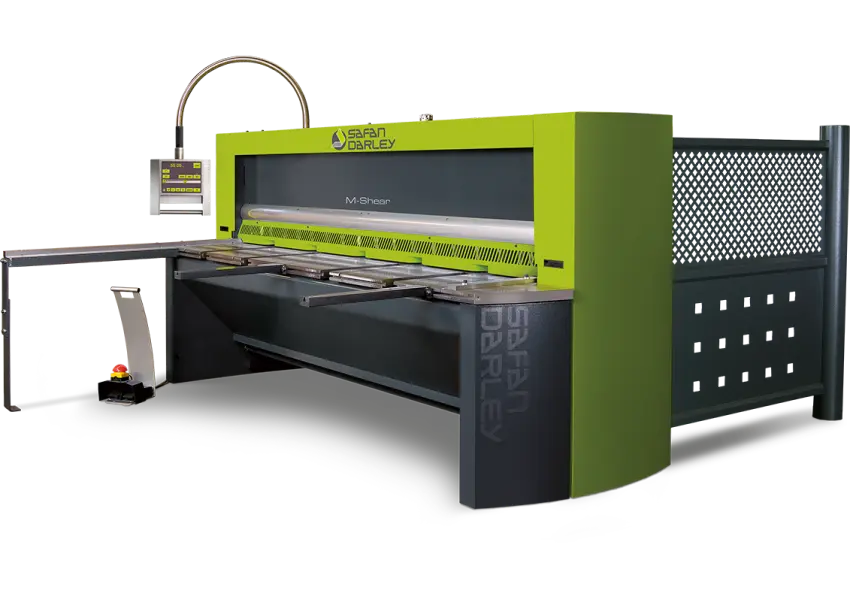

SAFAN DARLEY 205-6 M-Shear
Have one to sell?
ConditionNew
New
A cut above the rest
SafanDarley makes the premier shear in the market. Our hybrid drive system provides a very precise device with a significant reduction in energy costs.
The M in the M-Shear stands for multifunctional. The advanced hybrid drive system consists of servo electronic motors and a hydraulic pump which produces a remarkably quiet machine that is very energy efficient. This machine is designed with some extremely valuable features such as:
• Programmable start and stop position of the knife bar
• Automatic X-axis compensation when adjusting the cutting gap
• Automatic correction of the stroke length of the knife bar when adjusting cutting angle
Key Features
Safety
Safety first
Cutting capacity (Mild steel) 1/4”
Cutting length in inches (ft) 81 (6.5)
Main motor power in kW 11
No. of strokes/min
(full cutting length stroke) 32
No. of strokes/min
(min. cutting length stroke) 84
Cutting angle 0.5°-max (°) 2
Backgauge reach in inches 39.3
Backguage speed in inches/min 472
No. of hold-down pads 14
Machine weight in lb 9260
Touch Screen control on movable control arm
CNC-controlled back gauge
CNC-controlled clearance and cutting-angle adjustment
Automatic retraction of the back gauge for narrow strip widths
Programmable start/stop position for the entire length of the cutting beam
Blades with 4 cutting edges
Cutting line lighting with cutting line indication
2 adjustable support arms
2 squaring guides, on the right and left side of the table
T-slots and hand-slots spread across the width of the table
Finger guard
