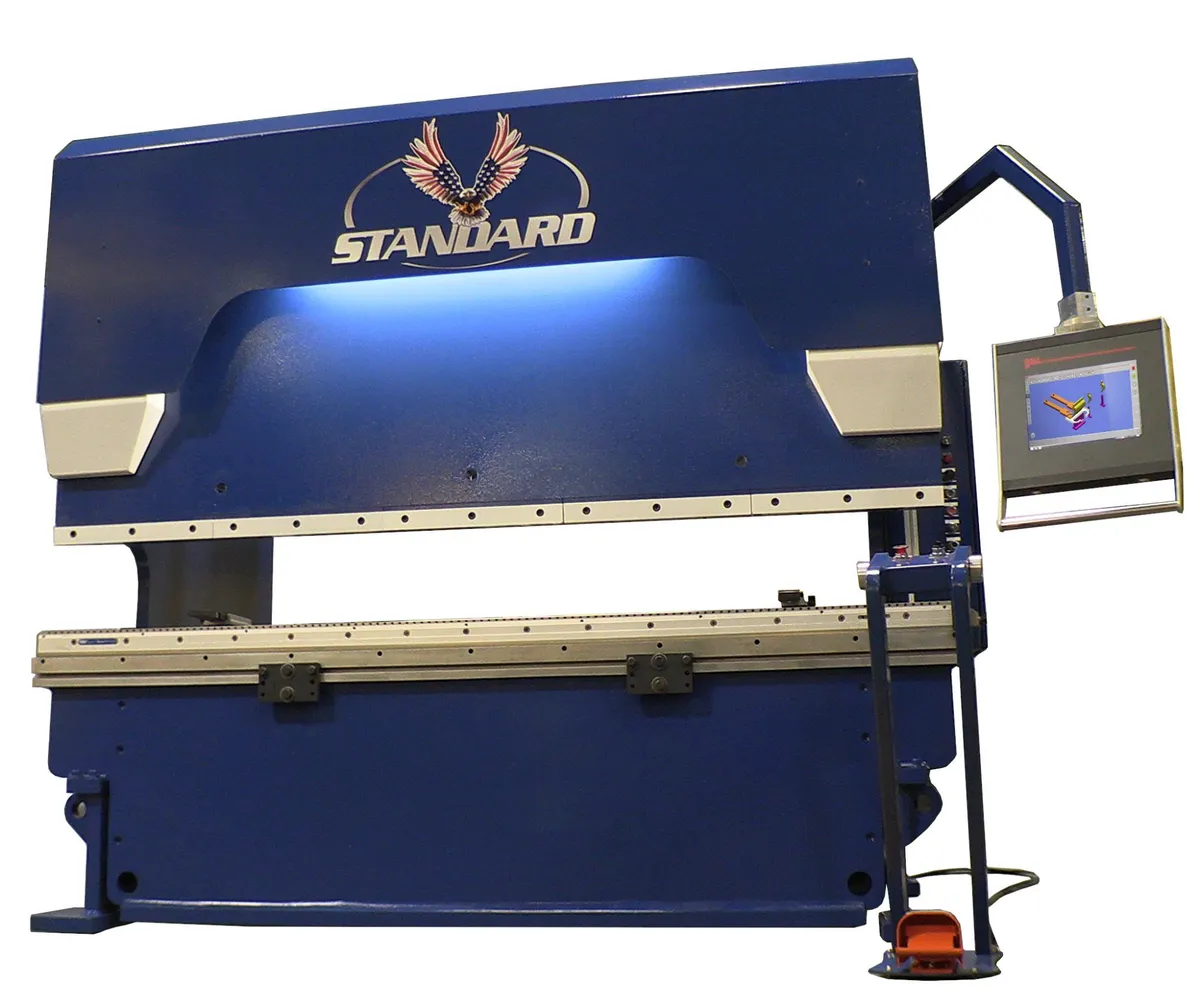

STANDARD INDUSTRIAL EV90-8 90 TON X 8' CNC Y1/Y2 HYDRAULIC PRESS BRAKE

Description

PRECISION
Our model EV press brakes are available from 90 to 1,100 tons up to 24’ with tandem configurations available. Our Y1-Y2, fully proportional hydraulic system provides +,- .0004” of precision ram to bed level accuracy across the length of the machine. All made in in our factory in Clarksdale, MS U.S.A.

840 2D GRAPHICAL CNC CONTROL
This state of the art control includes remote service/support and diagnostics via the ethernet connection, Windows 10 operating system, a 15” color touchscreen with pendant mount, a full 2 dimensional graphics package, 30,000 hard drive programs, unlimited off-line programmability via USB or ethernet, 2D collision detection and best bending sequences identification plus much more. The 840 controls up to 11 CNC axis plus CNC crowning (optional).

Remote support/service and diagnostics via ethernet
Windows 10 operating system
Fully 2D Graphical control w/touchscreen
15” color screen on pendant
Crowning correction in degrees (crowning sold separately)
2D identification of best bending sequences
2D graphical Offline software for desktop programming
2D collision detection
Unlimited job storage via USB & Ethernet
X, Y, R, Z1-Z2, X-Prime, X1-X2, R1-R2 programmability
Readily accepts most tooling files
30,000 hard drive programs
Programmable delay & retract at pinch point
Inch/mm conversion
Auto return of ram included
Low speed retract included
Dwell/decompression included
2 days onsite training at customer's facility (cont. U.S.)

Like all components on our machinery, this control is non-proprietary and readily available everywhere in the world

X AXIS SERVO GAUGING SYSTEM
Extremely heavy duty, precision servo gauging system with 29” travel. Available optionally with R, Z1-Z2, X-Prime or Z1-Z2+X1-X2+R1-R2.

X servo axis
29” X axis travel Speed: 15” per second Accuracy: +,- .003”
Manual R
Manual Z
Upgradeable to R, Z1-Z2, X-Prime, X1-X2, R1-R2 axes
Upgradeable to 39” travel (longer travels are available)

PROGRAMMABLE RAM TILT
The operator has the ability to control and program the tilt of the ram (+,- 3/4” of the centerline) via the CNC for the most precision adjustment required.

PROGRAMMABLE TONNAGE CONTROL
The model EV press brake comes standard with programmable tonnage that allows the operator to choose and save tonnages for each job.

UNLIMITED PARTS AVAILABILITY
All Standard Industrial machines come standard with components that are available everywhere in North America. We use no proprietary components that force you to come back to us for parts. In your manual you will have the original manufacturer’s name and part number of each component so you will never have trouble finding parts.

ONSITE TRAINING
All EV press brakes comes standard with onsite training at customer’s facility (contiguous U.S.). Once the machine is fully installed by your riggers, our experienced technicians arrive at your facility to fully train your operators on operation, preventative maintenance and answer an and all questions about the equipment.

AUTO RETURN OF RAM
Normal operation of ram requires operator to release footswitch to allow ram to return to upper limit. This option makes the ram return automatically even if footswitch is still depressed.

DECOMPRESSION SYSTEM
REQUIRED FOR BOTTOMING APPLICATIONS—allows oil pressure to bleed off to reduce shock to hydraulic system.

LOW SPEED RETRACT
Ram returns in slow press speed for handling of large work pieces.

WARRANTY
5 Year Parts + 5 Year Limited Onsite Labor + 2 Year CNC Warranty. This warranty includes a 5 year limited onsite labor warranty and a 2 year CNC Warranty. Unlimited lifetime telephone support is included at no charge. If during the first 5 years you have an unresolved issue and telephone troubleshooting has been fully exhausted, we will provide onsite labor to take care of the problem. This warranty is based on 3 shifts a day and 24 hour days.

Every machine is also available with our optional 7 Year Extended Warranty that extends the parts warranty by 2 years. NO OTHER MANUFACTURER MATCHES OUR WARRANTY.

SERVICE
We have service capability everywhere in the contiguous United States which can only be expected for a U.S. made machine. We also supply free telephone support for the lifetime of the machine. You talk directly to the people that make your machine.

MANUAL RAM CLAMPING
American or New Standard Style Ram Clamping. Extremely heavy duty, spring loaded die clamps for easy, fast die change. Accepts all American style standard and precision ground tooling. All press brakes can be ordered optionally with quick-change, powered ram clamping systems and European clamping systems in lieu of manual system.

EXTREMELY HEAVY DUTY BED CONSTRUCTION
Includes American Style Die Groove as standard. Incredibly heavy-duty lower beams are essential to any well-made press brake to provide the best deflection possible. CNC crowning units are available optionally.

BED FEATURES AND T-SLOT SUPPORT ARMS
The bed of the Y1-Y2 EV press brake includes a groove down the center of the brake bed to accept American style tooling. European beds also available. A t-slot across the front edge of the brake bed is included to allow the (2) standard 24” works supports to slide left to right the length of the bed.

24” T-SLOT SUPPORT ARMS
Each machine comes standard with 24” work supports with machined t-slots for precision front gauging. These arms can be adjusted vertically to match tool height and can be adjusted left to right the full length of the bed via the included t-slot across the front edge of the bed.

T-SLOT ACROSS FRONT EDGE OF BED
A 5/8” precision machined t-slot runs the full length of the brake bed. This slot allows the standard 24” support arms to slide left to right the full length of the bed.

RAM CONTROL
The Hand/Foot safety sequence with footswitch is an O.S.H.A. approved 2 hand pedestal control with 3 position footswitch that comes standard on all press brakes. Available optionally are light curtains, Keyence scanning systems and Laser Systems for up close work. As well as interlocking, physical barriers across back of machine if needed.
