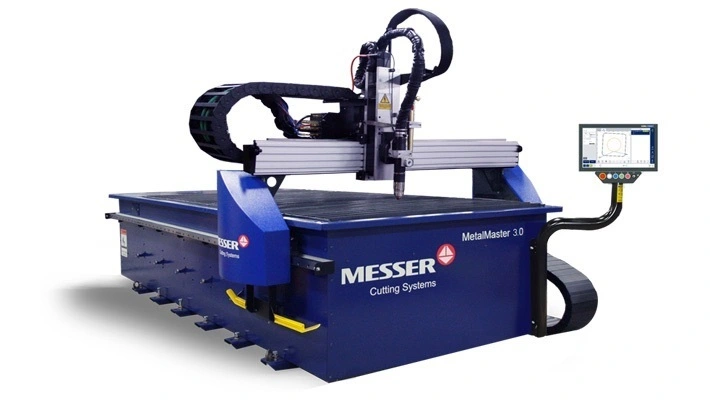

MESSER MetalMaster 3.0 The new and improved low cost plasma and oxyfuel cutting machine.

Description

GET THE COMPETITIVE ADVANTAGE BY UPPING YOUR METAL-CUTTING GAME.

Messer Cutting Systems’ MetalMaster 3.0 is a high-performance, compact and low-cost plasma and oxyfuel flatbed cutting machine. Delivering peerless cut quality at such an affordable cost, the MetalMaster 3.0 cutting machine can be quickly installed for easy cutting.

Businesses with a need for an economical machine that delivers supreme precision and powerful performance with a small footprint need look no further than the MetalMaster 3.0. This finely crafted cutting machine is economical, it is a light industrial machine made for simple plasma cuts, oxyfuel cuts, or a combination of plasma and oxyfuel cuts.

The MetalMaster 3.0 burn table features high position speeds as well as a fast, intelligent torch lifter that reduces nonproductive times. With lightning-fast positioning at 114.83 feet/min, it delivers unparalleled accuracy in minimal space.

Enjoy easy installation, integrated guidance, and a twin-sided rack and pinion drive for reliable performance.

Specifications & Capabilities

• Cutting width 5′, cutting length 10′.
• Ergonomically designed with stable table construction and integrated pull out buckets and smoke extraction.
• Highly accurate and reliable performance with positioning speeds of up to 114.83 feet (35 meters) per minute.
• Maximum working width with minimum space requirements.
• Fast and easy installation.
• Integrated guidance.
• Twin-sided longitudinal rack and pinion drive.

INCREASED PRODUCTIVITY:

Improved User Experience

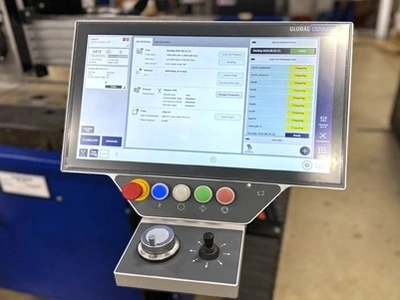

The new, easy-to-use Global Connect L control equipped with 18.5” touchs-screen helps to save paper and provides a clear overview of all production data in digital form.

Torch Flexibilty

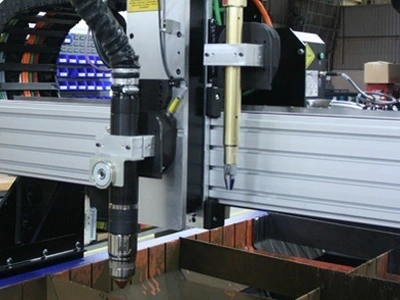

The Plasma torch and Turbo Flame™ torch are accurately positioned through the shared use of the CLS lifter and the magnetic SureStop Collision Sensor for fast and easy reset.

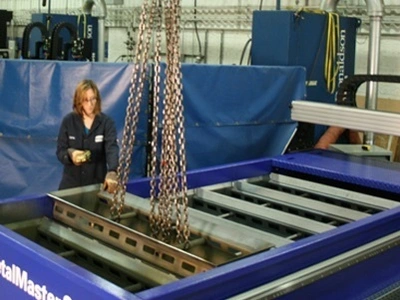

Pull Out Buckets with Smoke Extraction
A smoke removal system with clean-out buckets. Includes a longitudinal duct built into the side wall of the table with a convenient exhaust takeoff for low cost connection to an optional dust collector. Six, 20 inch zones with cam actuated dampers minimize the dust collector fan size by limiting smoke extraction to the area under the torch.

Improved Cutting Quality

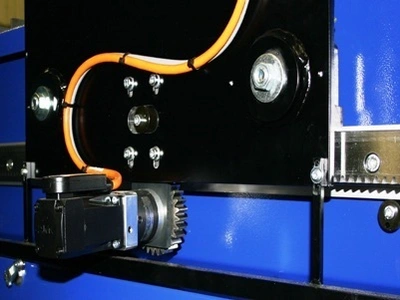

X and Y Axis Drives with dual AC servo motors coupled to precision planetary gear reducers drive the machine on large 1.25” by 1.75” Gudel ways. The 1.875” diameter full capture bearings in the Y-axis ride on precision ground and polished circular ways with the carriage driven by the AC servo motor.

Standard Features

• Cutting width 5’.
• Cutting length 10’.
• Hypertherm Powermax 125 plasma torch with cutting up to 1” thick material.
(Standard)
• Cuts mild steel, stainless steel, and aluminum.
• Compact design.
• Positioning speed of 1000 ipm reduces idle time between cuts.
• Control console mounted on the right side of machine for ease of access and safe operation.
• Easy access to cutting table for quick and easy plate loading and unloading.
• Specially designed slag buckets for easy table cleaning.
• Global Connect Lite, user-friendly touch-screen panel with a Windows® interface.
• Virtual Service™ remote diagnostics.
• Glare Shield.
• Laser Pointer.
• CSL torch lifter with SureStop Collision Sensor.
• Reliable height control via arc-voltage sampling improves nozzle life and cut quality.
• UL/CUL
