MESSER METALMASTER EVOLUTION - Created to Revolutionize Plate Processing

Description

Revolutionizing Plate Processing

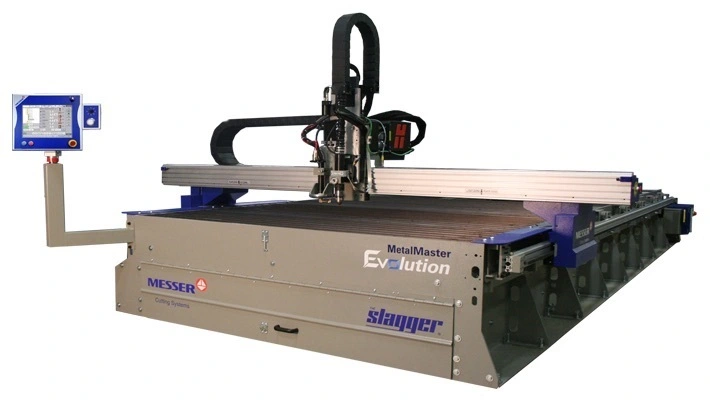

Evolving to meet the needs of the modern fabrication shop, solving costly secondary operations downstream, the unitized plasma cutting machine MetalMaster Evolution® will change the way you look at plasma part cutting.

This high-speed, multiple-process plasma cutting machine is built to deliver maximum productivity and durability as well as outstanding cut quality and accuracy. Messer Cutting Systems’ MetalMaster Evolution® comes outfitted with a number of standard features like The Slagger® cutting table and includes scores of optional features such as plasma beveling, oxyfuel cutting, drilling, marking, vertical pipe cutting, water table, and so much more.

METALMASTER EVOLUTION® HIGHLIGHTS

The MetalMaster Evolution® is a feature-rich plasma cutting machine, offering smooth edge quality, precise hole cutting, and high accuracy.

With high-quality components and the strictest assembly and testing methods within the marketplace, the MetalMaster Evolution® will take your shop to the next level.

Global Control

The MetalMaster Evolution® has an easy-to-use Windows® 10 interface. The Global ControlS is a compact touch-screen process database featuring a custom shape library, CAD import, and True-Shape Nesting. Service experts are just a button push away via Virtual Service™. Easy-to-learn functions enable employees to become expert operators in minutes.

Axis Drives

The MetalMaster Evolution® features high machine accuracy with positioning speeds up to 1,700 inches per minute with an acceleration of 38 inches per second2 in all axes. This plasma-cutting machine also features precision rack-and-pinion drives in the X and Y axes. It also has ultra-smooth planetary gearboxes in the X and Y axes. Dual X-axis drives provide accuracy in cut parts.

Bearings Assembly

Each MetalMaster Evolution® carriage uses four-bearing way encapsulation with wide spacing to provide stable support. Gothic arch bearings on circular ways provide eight contact points per carriage for smooth precise motion. Ways and gear racks are attached to the way surfaces by special grooves in the extrusion, enabling future table extensions.

Beam Support

The MetalMaster Evolution® also features an extruded aluminum beam and X-axis ways, providing support and high strength while reducing weight. The cross-braced beam is extremely rigid, providing higher acceleration and resulting in accurate cut parts and smooth motion.

THE SLAGGER® SELF-CLEANING UNITIZED TABLE COMES WITH THE METALMASTER EVOLUTION®

The Messer Slagger® self-cleaning unitized side-draft zoned and ducted table comes standard on the MetalMaster Evolution, forming a solid foundation for this table.

There’s no need to clean the table or remove slats as the pusher blade does all the work, usually in mere minutes.
The Slagger® allows for easy small parts retrieval. An optional water table is also available.

METALMASTER EVOLUTION® SPECIFICATIONS

Messer Cutting Systems’ MetalMaster Evolution® comes with many standard features as well as optional features to help your business get more out of your plasma cutting machine.

METALMASTER EVOLUTION® STANDARD FEATURES

• Machine cutting widths available are 6 feet (1.8 meters), 8 feet (2.4 meters), and 10 feet (3 meters).
• Cutting lengths: 10 foot (3 meters) machines can expand in 5 foot (1.524 meters) increments to 50 feet (15.24 meters).
• Cut 26-gauge to 3 inch-thick plate.
• Cuts mild steel, stainless steel, and aluminum.
• Machine motion accuracy is an exceptional +/- 0.002 inches (0.45 millimeters) over any 6-foot x 10 foot (1.8-meter x 3-meter) area and verified with a laser interferometer.
• Positioning speeds up to 1,700 inches per minute with acceleration up to 38 in./sec2.
• Contouring speeds up to 400 inches per minute.
• The Slagger® self-cleaning zoned and ducted dry exhaust table.
• Windows® based Global ControlS with easy-to-use operator interface.
• Uses an aluminum beam extrusion for extra stability and support.
• Right or left-hand mounted Global Control tilts and swivels for operator comfort.
• Multiple reference point positions for efficient start-of-cut locations.
• SureStop Collision Sensor with easy and accurate reset.
• Advanced plasma technology provides consistent piercing and faster cutting.
• High-speed CSL200 Torch lifter.
• Fast installation and relocation due to modular design.
• Virtual Service™ remote diagnostics and consultation.
• Designed and manufactured in the USA to machine tool and ISO 230-2 standards.
• UL/CUL-certified.

METALMASTER EVOLUTION® OPTIONAL FEATURES

• Two plasma torches, each with a maximum of 400 amp capacity.
• Plasma beveling units: Bevel-R® 5-Axis, Compact Plasma Bevel Unit with SureStop • • Collision Sensor, Manual Plasma Stripping Bevel Unit for X-Axis.
• Turbo Flame™ or ALFA Oxyfuel Torch.
• Gas cutting with advanced oxyfuel technology using the Omniflow automated gas regulation system.
• FT100 Torch Ignitor.
• SensoMat® PAN.
• Various plate markers: Plasma, Air Scribe, Ink-Jet, and Telesis® Pinstamp®.
• Digital video camera.
• Laser pointer.
• Global Reporter.
• Two-zoned protection systems.
• Enclosure.
• Slag Scoop or Slag Bucket with Pit.
• Manual cleaning or water table.
• Plasma station outlet equipment.
• Plasma Air Booster.
• Programming and nesting software.
• Drilling up to a ⅜-inch diameter.
• Operator Swing-Away Glare Curtain or Glare Shield at the torch.
• Flex Zone for processing material outside the table.
• Vertical pipe and tube cutting.
• Pedestal-mounted console.
• Messer dust collector systems.
• Sentry Service Preventative Maintenance Program.
• Visual Service adds a sense of sight to the troubleshooting process.
