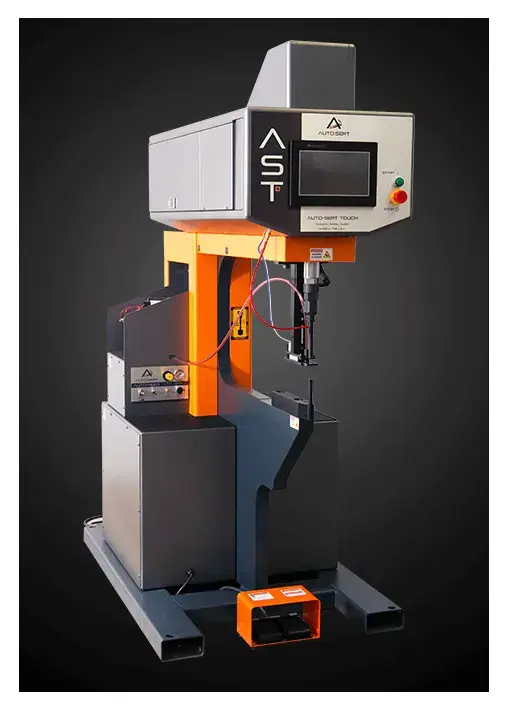

AUTO-SERT AST-10/36 INSERTION PRESS

Description

The AST-10 (Auto-Sert Touch Screen, 10 Ton model) hydraulic hardware insertion press install self-clinching fasteners into pre-punched, pre-formed, sheet metal parts. This press inserts many sizes of self-clinching nuts, studs, and standoffs manually or automatically and is equipped with state-of-the-art Human Machine Interface (HMI) technology.

The standard press throat options are 20” and 36”. You have the ability to custom-order presses with even larger throat depths. This insertion press is Made in the USA. This exceptional press is manufactured by Auto-Sert, Inc., Frederic, Wisconsin.

INSERTION PRESS FEATURES & BENEFITS
Rigid Construction: 2” thick steel center mainframe.
20” and 36” Throat Depth Options: Design allows less restriction of movement around ram.
Quick Change Tooling: Minimal tools needed for tooling change.
Uniform Hydraulic Pressure by Design: No variation in pressure from heat build-up. Hardware is installed uniformly in thin, soft aluminum parts at low-pressure range to install large studs in stainless steel, the Auto-Sert press has capacity – with power to spare.
Reliable Safety System: Redundant safety system internally monitored by a micro-controller.
Very sensitive pressure sensing device used, plus ¼” window of safety before full tonnage is applied by press in manual operation.
Operator can work faster with confidence.
Touchscreen FEATURES & BENEFITS
Durable HMI control components allows you to set up all machine functions with a touch.
Digital Display gives live reading of hydraulic and installation pressure.
State of the art electronics allows operator instant, live visibility to hydraulic and installation pressure and a graph to keep track of all installs.
HMI with a digital display eliminates key switches and push button.
Machine verifies installation pressure transmitted to a graph (great where specific pressure requirements are needed (automotive, etc.).
New, improved hydraulic system.
Servo hydraulics allows the machine to get down to minimal installation force (excellent for installing broaching fasteners into printed circuit boards).
The AST is equipped with a proven, reliable Safety System internally monitored by a micro-controller and a 9” Touchscreen. This screen is packed with advanced features including batch/part count, digital pressure, read-out, graphs, controls, recipe menu that saves over 100 files, lockout for screen, and easy operations indicator.
