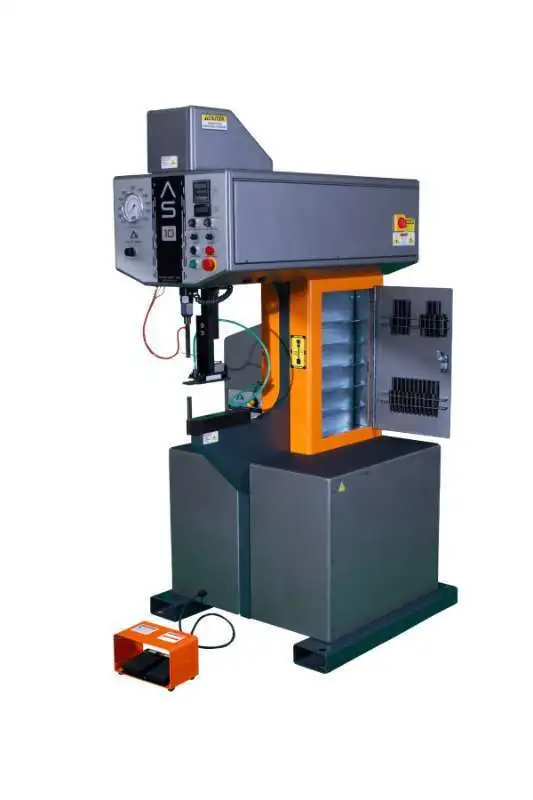

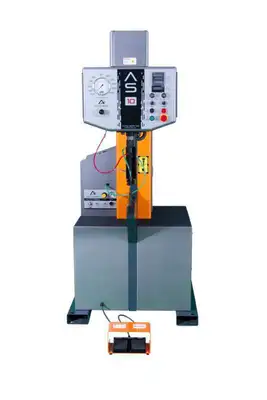

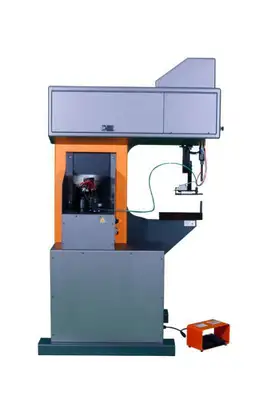

AUTO-SERT AS-7.5/36 HYDRAULIC INSERTION PRESS
Have one to sell?
ConditionNew
New
The Auto-Sert 36″ Hydraulic Insertion Press is a high-powered, versatile machine, which provides the flexibility to work with both flat and formed parts of varying sizes. The control panel is located on the front face at eye-level for quick and easy adjustment during operation, and tooling part storage is conveniently placed within the machine itself, eliminating the need for extra shelf and storage space within the shop.
Min. Tonnage Capacity: 350 lbs
Max. Tonnage Capacity: 15,000 lbs
Throat Depth to Back: 36″
Throat Depth to Top: 20″
Ram Stroke: 6″
Min. Hydraulic Pressure: 40 PSI
Max. Hydraulic Pressure: 3000 PSI
Oil Reservoir Capacity: 12 gallons
Electrical Specs: 208/230/415/460/575 V - 3 Phase 50/60 Hz
