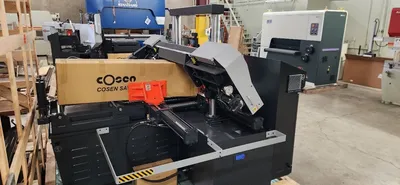

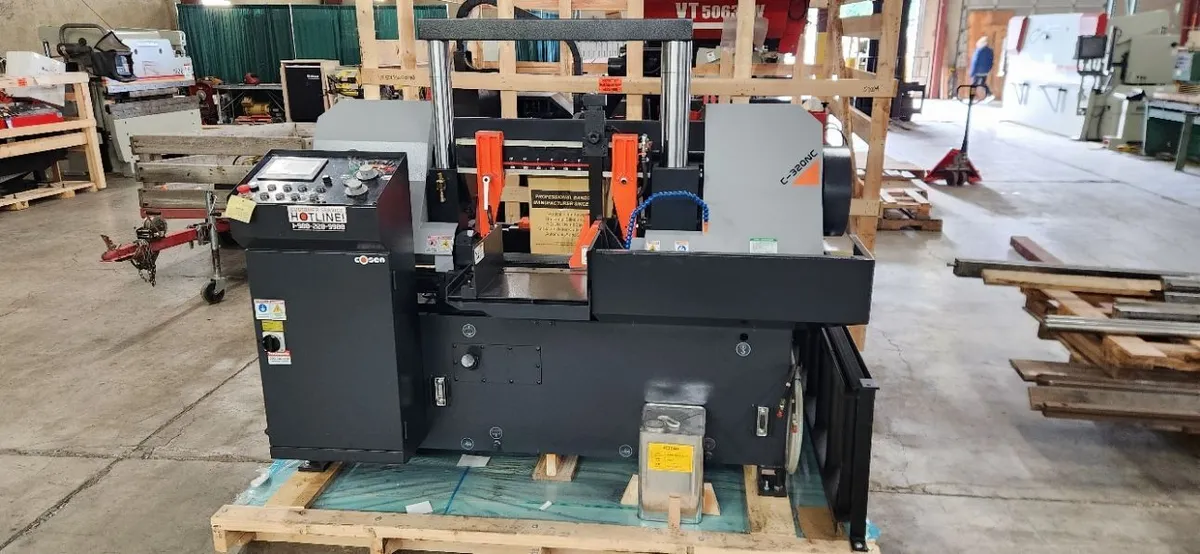

NEW COSEN C-320NC FULLY AUTOMATIC HORIZONTAL DUAL COLUMN BANDSAW
Have one to sell?
ConditionNew
1 available
New

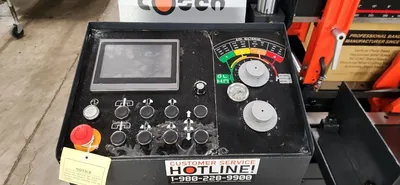

Cosen's C-320NC is a high production machine which incorporates a massive base, sturdy saw frame, with an extremely heavy duty gear box, a 5HP drive motor, and a user friendly programmable control for ease of operation. Rugged, dependable, and advanced technology, are all words that describe Cosen's C-320NC production machine, making it the perfect saw for mass production settings
Maximum Cutting Capacity
Round 12.5”
Square 12.5” x 12.5”
Rectangular 12.5” x 14.9”
Bundle Width: 7.4” - 11.8”
With optional top clamps Height: 2.7” - 5.5”
Remnant Piece 2”
Blade Variable Speed 53 – 337 FPM
Blade Size 13'11" x 1.25" x 0.042"
Motor Saw Blade 5 HP
Motor Hydraulic 1 HP
Motor Coolant 1/8 HP
Automatic Material Feed System
Job Storage Up to 100 jobs
Single Index Stroke 0” to 15.8”
Multiple Stroke Indexing 0” to 999”
(Automatic kerf compensation)
Wired 230/60/3
Approximate Weight 3,765 Lbs.
Approximate Floor Space 82” x 93” x 68”
Work Bed Height 31.1”
*Please note that machine design and specs can change without notice
Max. AMP Draw - 230v: 18.01
460v: 9.01
