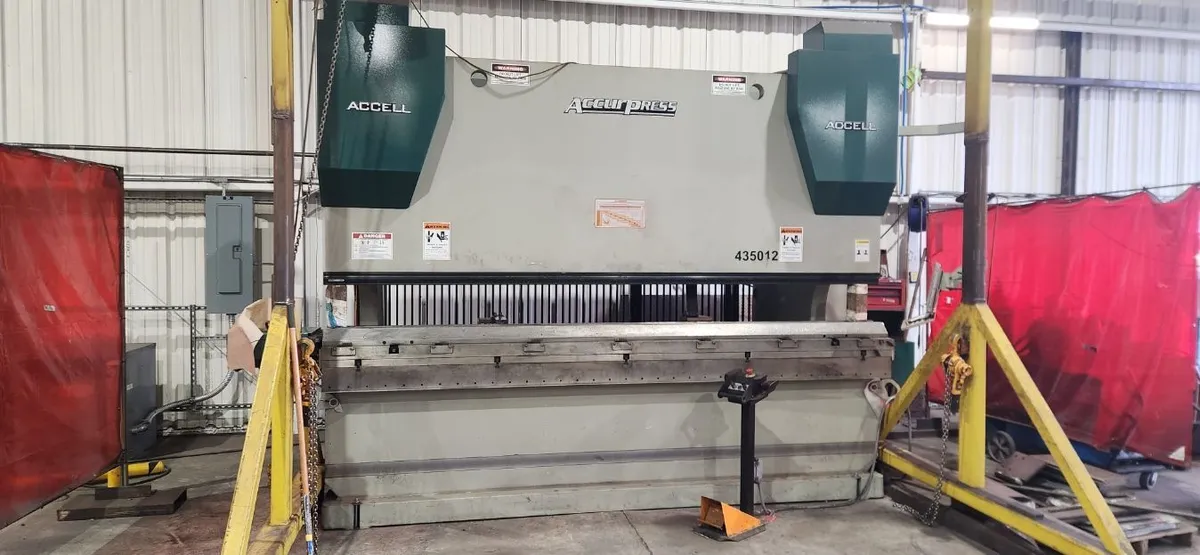

2015 ACCURPRESS EDGE 435012 350 Ton x 12' CNC Hydraulic Press Brake (Factory Refurbished in 2024)
Have one to sell?
ConditionUsed
1 available

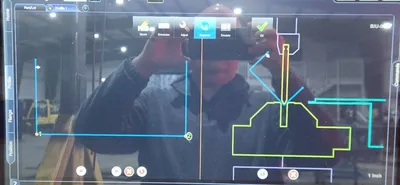

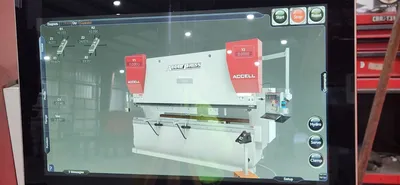

2015 ACCURPRESS EDGE 435012 CNC Hydraulic Press Brake, factory refurbished in 2024, 350 Ton x 12', 9-axis. Features Vision Control Elite 6 Axis Backgauge, 39" travel with custom channel lock die. Includes Wila punches. Condition: Good.
Tonnage 350
Length of Bed 144”
Distance between Housings 126”
Bed Height 38”
Top Bed Width 10”
Ram Open Height 20”
Ram Closed Height 8”
Ram Stroke Length 12”
Throat Depth 18”
Main Motor 40 HP
Wired 460/60/3
Estimated Dimensions 228” x 75” x 128”
Estimated Weight 46,000 Lbs.
Ram Speeds
Fast Approach 320 IPM
Slow Bend 24 IPM
Fast Return 260 IPM

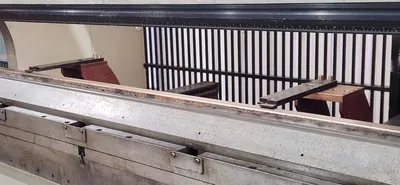

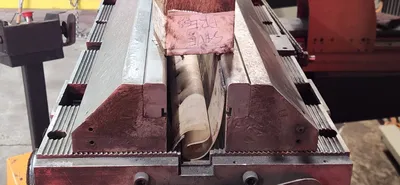

Hydraulic Oil, Machine Groove in Bed; Vision Control Elite 6 Axis Backgauge with 39” Travel; T-Slots in Front of Bed; 16” Bed Cap; 16’ Custom Channel Lock Die (with 0.5” - 5.5” Opening Range, Power Lock-Unlock, CNC Crowning and CNC Opening Adjustment) and User Manual, Full set of Segmented Wila New Standard Punches BIU-034 with R3 tip. As Is, Where Is. Condition: Good
