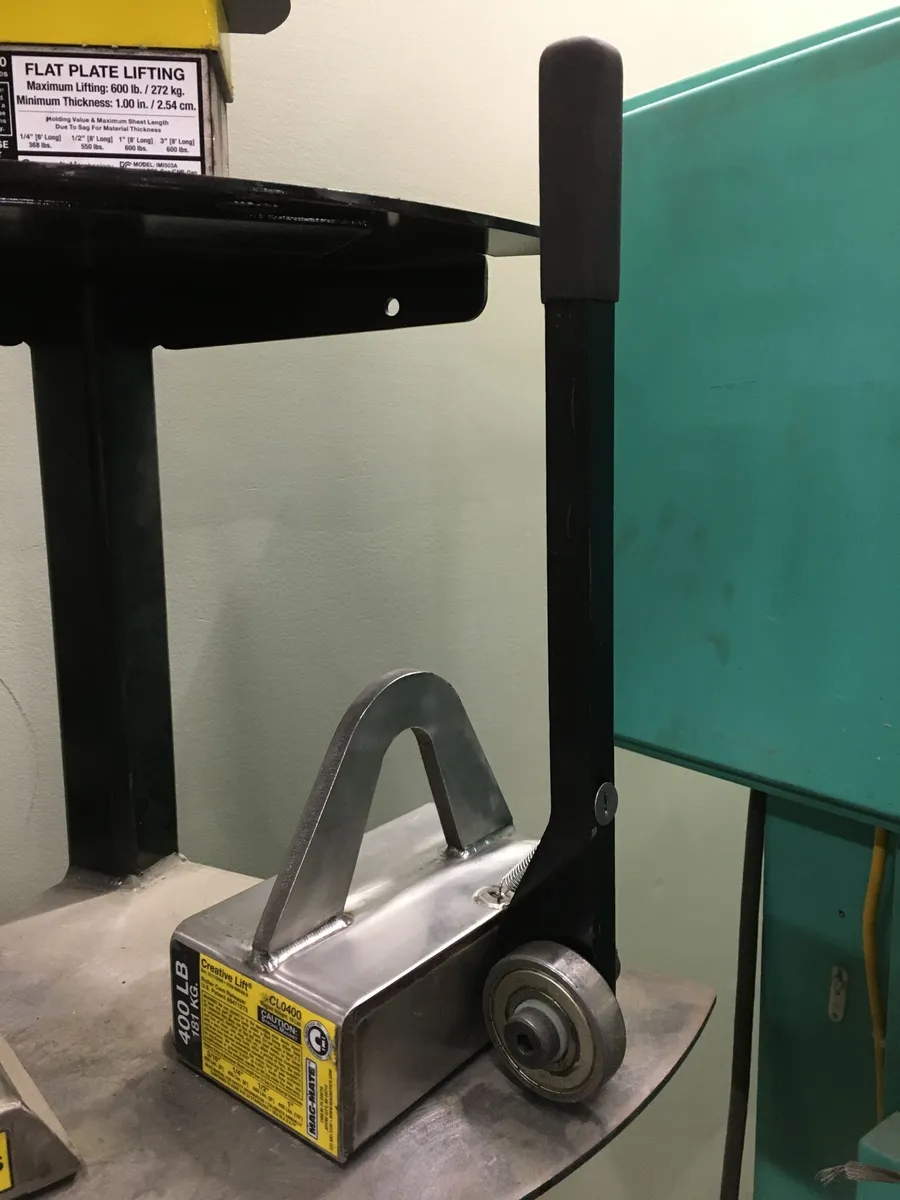

USED MAG-MATE CREATIVE LIFT CL0400
Have one to sell?
ConditionUsed
1 available
$392.00 USD
Creative Lift permanent lift magnets are ideal for handling steel plates, die castings, forgings, etc. They eliminate the need for clamping devices, slings or chains. One person can perform operations previously calling for two or more people.
Magnet Activation: Non-Marring Roller Cam
Magnet Material: Ceramic
Maximum Rated Flat Capacity: 400 Lbs.
Minimum Material Thickness for Activation: 3/16"
Maximum. Rated Capacity @ Minimum Activation Thickness: 400 Lbs.
Required Material Thickness for Maximum Rated Capacity: 3"
Overall Height: 6-3/4"
Overall Length: 7-3/4"
Overall Width: 7-1/4"
Magnet Height: 2-1/2"
Magnet Width: 6-1/2"
Magnet Length: 4"
Handle Length: 16"
Bail Opening Height: 2-7/8"
Bail Opening Width: 3"
Maximum Heat Resistant Temperature: 300⁰F
