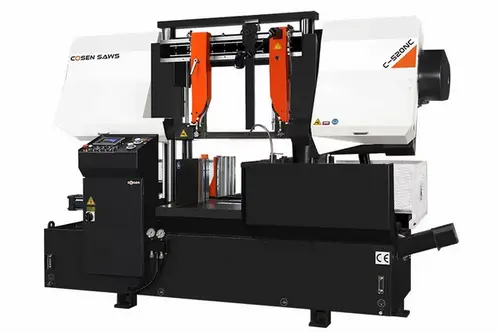

Nuevo COSEN C-520NC | Horizontal Dual Column Band Saws

Descripción

Band Saw Machine

520mm Automatic horizontal dual column type band saw incorporates a 7.5 hp powerful blade motor, 54 (mm) wide blade, independent control panel, and heavy-duty dual column design. These features create a very rigid, dynamically stable, and productive machine. The oversized precision ground columns ensure smooth saw frame movement and the consistently stable cutting force required throughout the cutting cycle, thereby increasing the cutting efficiency and extending blade life.

Standard Features

• 7" HMI Touch Screen.
• Back-tilt angled saw head puts less stress on the blade, ensuring longer life.
• Hydraulic shuttle vise assembly.
• Gearbox design to accept high lateral pressure (no thermal distortion).
• Inverter blade drive system allows infinitely variable blade speeds.
• Carbide blade guides.
• Automatic hydraulic blade tensioning device.
• Integral coolant system.
• Ductile cast iron vise.
• Precision feed pressure and feed rate dual valve system for optimal cutting performance.
• Split front vise jaws for a burr-free cut.
• Computer controlled multiple indexing up to 999" max length.
