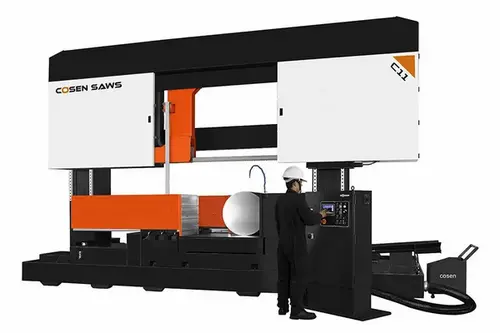

Nuevo COSEN C11 | Horizontal Band Saws

Descripción

This massive dual column band saw features Cosen's Smart NC+ system with automatic first (trim) cut, a customizable material feed & speed database, plus storage and queue of up to 100 jobs. While both feed force and feed rate are controlled hydraulically, the dynamically enhanced saw frame rides on a 4 linear-rail guided system, which ensures the smoothest feeding and highest precision guide system available today.

With its rigid gantry structure, a 25 HP inverter drive, 80 mm wide blade, and simple yet useful controls, Cosen's C-Tech C11 band saw is the perfect saw for demanding production shops.

Standard Features

• Dual columns and large robust saw frame design providing sound structural strength.
• High precision linear guide way design on both saw frame and shuttle vise travels.
• Ergonomic door frame design with ample clearance for material unloading.
• 25HP inverter motor directly drives a helical bevel gearbox.
• Inverter-controlled infinitely variable blade speed.
• Vibration damper.
• Motor driven wire brush.
• Automatic hydraulic blade tensioning.
• Servo controlled ball screw driven shuttle vise.
• Full stroke hydraulic front and rear vises.
• Automatic guide arm positioning in sync with vise.
• Mitsubishi PLC controller and 7" HMI touch screen.
• Cosen Smart SNC+ System with material database, 100 cutting jobs storage, blade speed control and blade life display.
• Automatic First Cut (Trim Cut).
• Instant reading on blade speed, cutting rate, blade life & blade height display.
• LED work light.
• Bi-metal blade x 1.
